Park - Engine Running - Gen 3 - A/T System Hydraulic Diagram

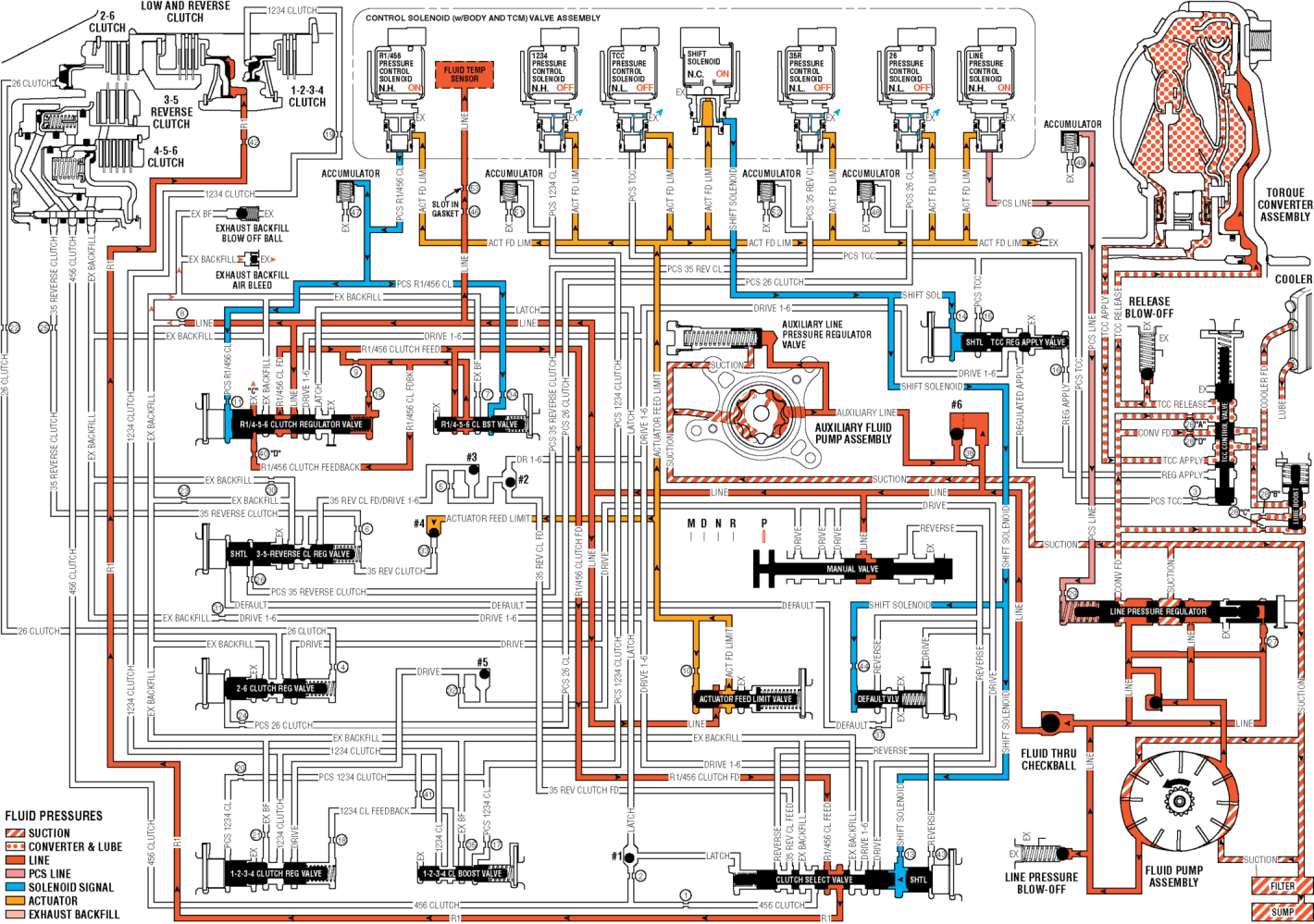

Fig 1: Park - Engine Running - Gen 3
GM3277882Courtesy of GENERAL MOTORS COMPANY
