Neutral - Engine Running - Gen 3 - A/T System Hydraulic Diagram

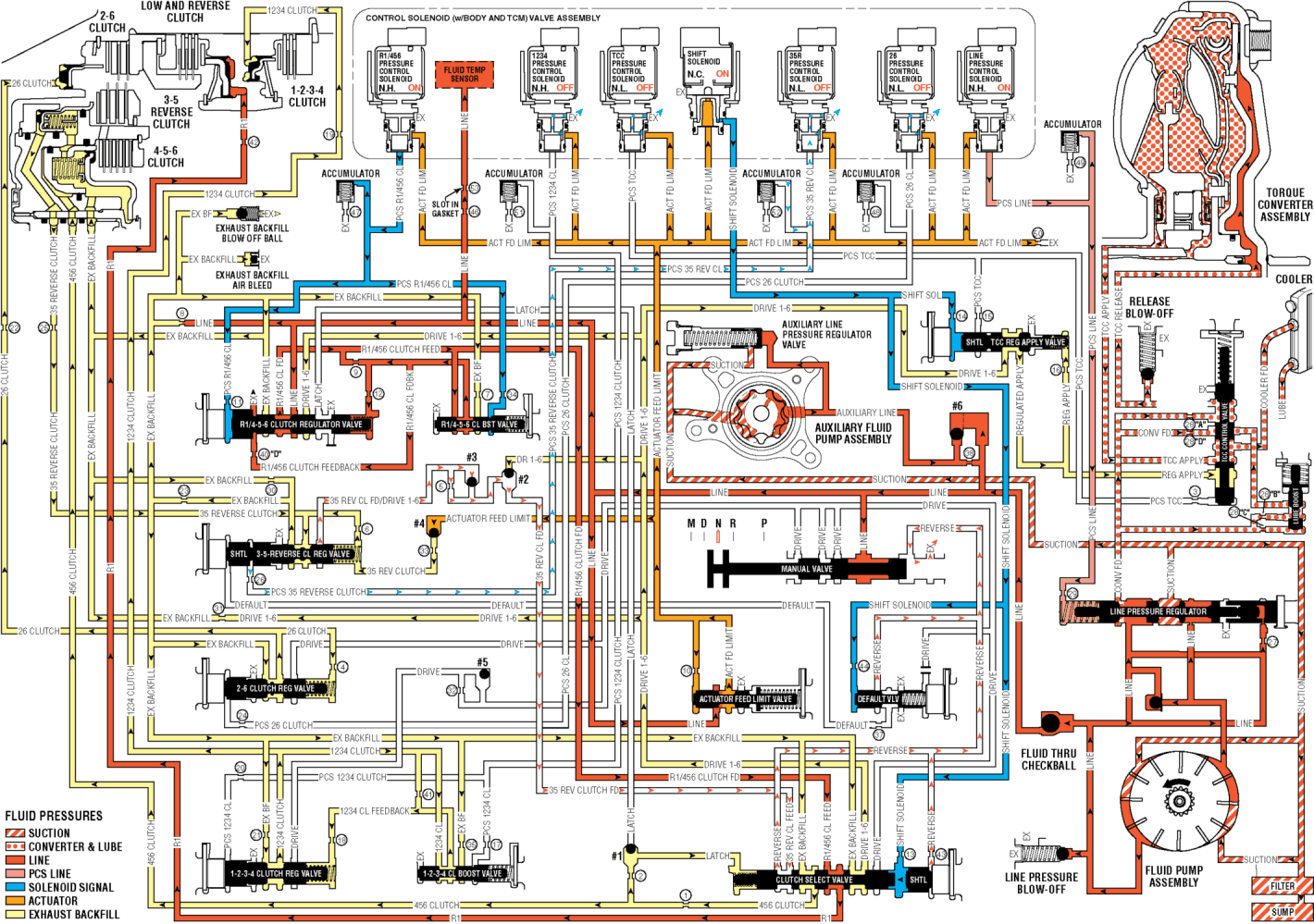

Fig 1: Neutral - Engine Running - Gen 3

GM3277887

Courtesy of GENERAL MOTORS COMPANY
