Drive Range, Fifth Gear - Gen 3 - A/T System Hydraulic Diagram

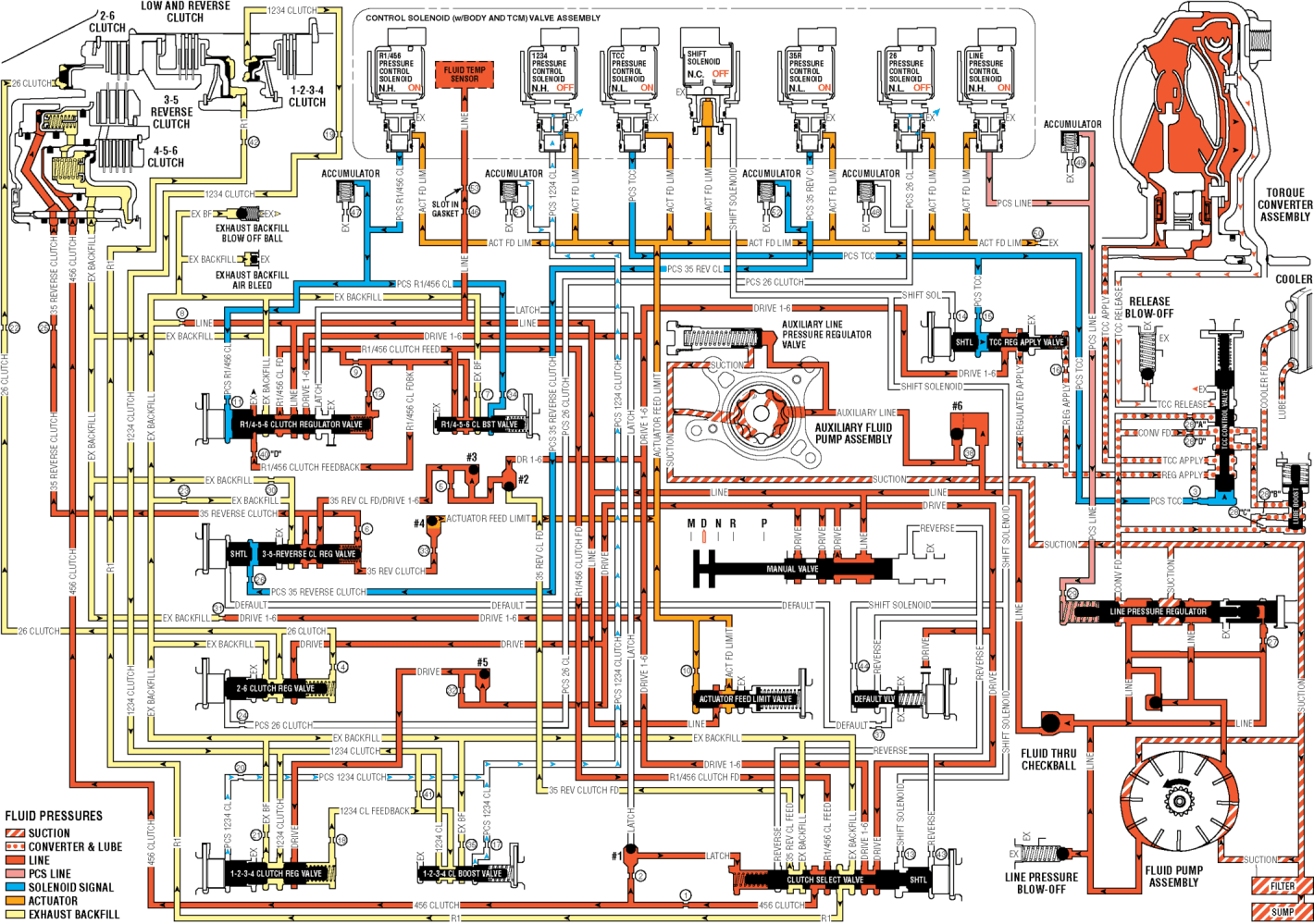

Fig 1: Drive Range, Fifth Gear - Gen 3
GM3277898Courtesy of GENERAL MOTORS COMPANY
