Air Conditioning Evaporator Thermal Expansion Valve Heat and Brake Pipe Shield Replacement

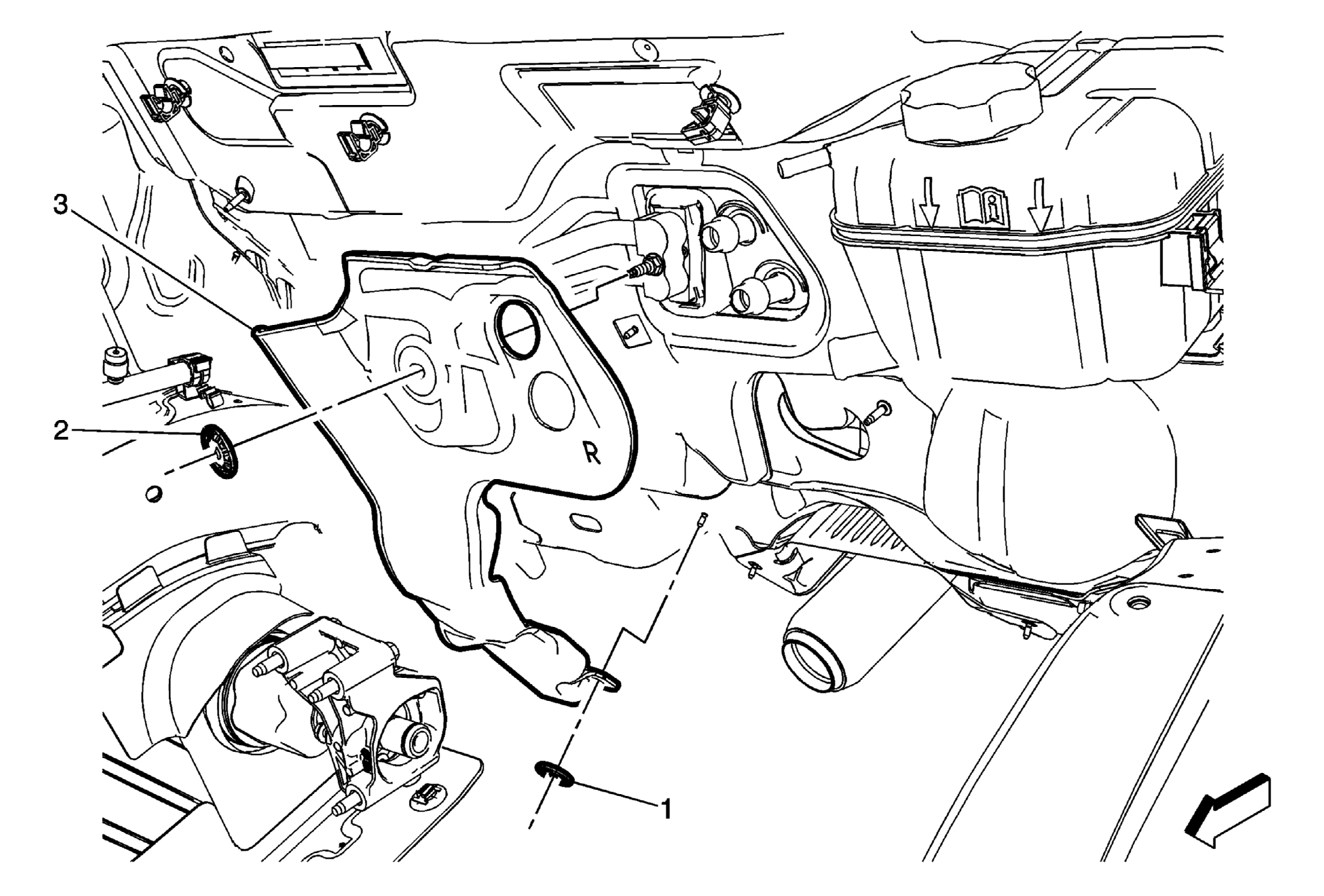

Fig 1: Air Conditioning Evaporator Thermal Expansion Valve Heat and Brake Pipe Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static) , Cooling System Draining and Filling (GE 47716) . Remove intake manifold cover. Refer to Intake Manifold Cover Replacement . Disconnect the heater outlet hose from the heater core tube. Refer to Heater Outlet Hose Replacement (Heater Core Outlet Tube to Heater Outlet Pipe LKW) , Heater Outlet Hose Replacement (Auxiliary Water Pump to Heater Outlet Pipe LKW) , Heater Outlet Hose Replacement (Radiator Surge Tank Auxiliary to Warer Pump to Water Outlet LKW) , Heater Outlet Hose Replacement (LUK) , Heater Outlet Hose Replacement (LTG) . Disconnect the heater inlet hose from the heater core tube. Refer to Heater Inlet Hose Replacement (LKW) , Heater Inlet Hose Replacement (LUK) , Heater Inlet Hose Replacement (LTG) .
1	Air Conditioning Evaporator Throttle Expansion Valve and Brake Pipe Heat Shield Retainer CAUTION: Refer to Fastener Caution . Procedure Lift the vehicle. Refer to Lifting and Jacking the Vehicle .
2	Air Conditioning Evaporator Throttle Expansion Valve and Brake Pipe Heat Shield Retainer Procedures Lower the vehicle. Move the vacuum lines and any wiring harness out of the way.
3	Air Conditioning Evaporator Throttle Expansion Valve and Brake Pipe Heat Shield Procedures Level the engine coolant to the proper level. Refer to Cooling System Draining and Filling (Static) , Cooling System Draining and Filling (GE 47716) . Inspect for engine coolant leaks.
