Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (LTG, LKW)

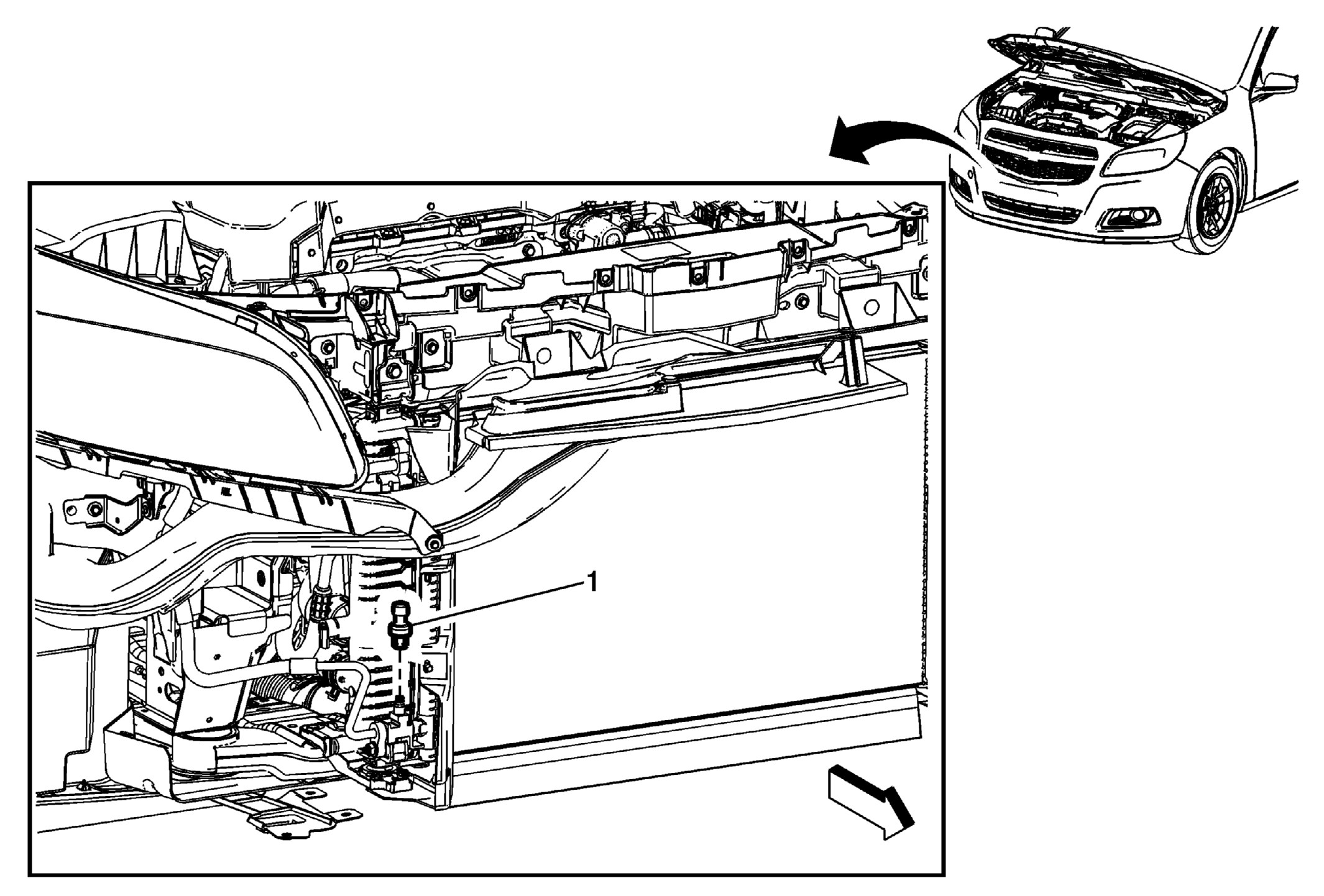

Fig 1: Air Conditioning (A/C) Refrigerant Pressure Sensor (LTG, LKW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Disconnect the electrical connector from the pressure sensor.
1	Air Conditioning Refrigerant Pressure Sensor CAUTION: Refer to Fastener Caution . NOTE: Remove and discard the O-ring and replace with NEW only. Refer to Air Conditioning O-Ring Seal Replacement . Tighten 6 (53 lb in)

Callout

Component Name

Preliminary Procedures

Air Conditioning Refrigerant Pressure Sensor

CAUTION:

NOTE:

Remove and discard the O-ring and replace with NEW only. Refer to Air Conditioning O-Ring Seal Replacement .

Tighten
6 (53 lb in)
