Crankshaft Balancer Replacement

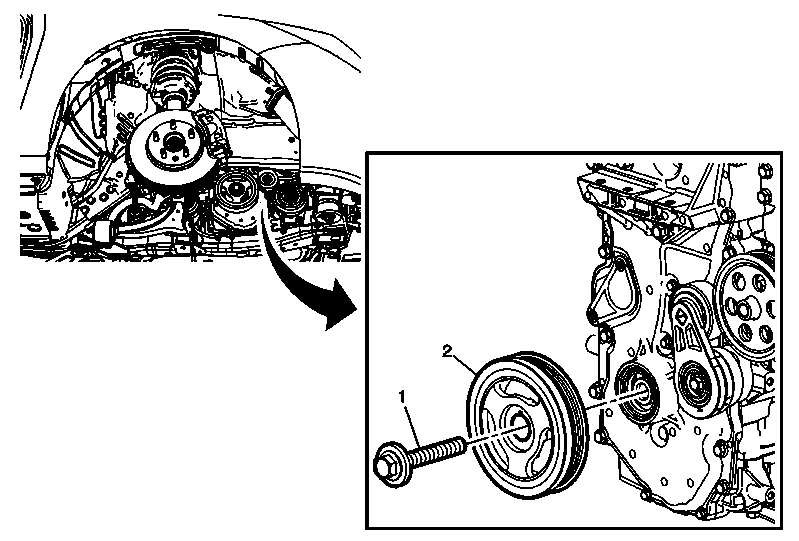

Fig 1: Crankshaft Balancer
GM2812141Courtesy of GENERAL MOTORS COMPANY
Crankshaft Balancer Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the starter . Refer to Starter Replacement (LTG) , Starter Replacement (LKW) .
  2. Install the EN-50792  Flywheel Holding Tool.
  3. Remove the drive belt. Refer to Drive Belt Replacement .

Special Tools

  • EN-41816  Crankshaft Balancer Remover
  • EN-45059  Angle Meter
  • EN-50792  Flywheel Holding Tool
For equivalent regional tools, refer to Special Tools .
1 Crankshaft Balancer Bolt
CAUTION:

Refer to Fastener Caution .


Procedure
Install a NEW crankshaft bolt and washer.
Tighten
150 (111 lb ft) plus 180 degrees.
2 Crankshaft Balancer
