Turbocharger Heat Shield Replacement (LTG)

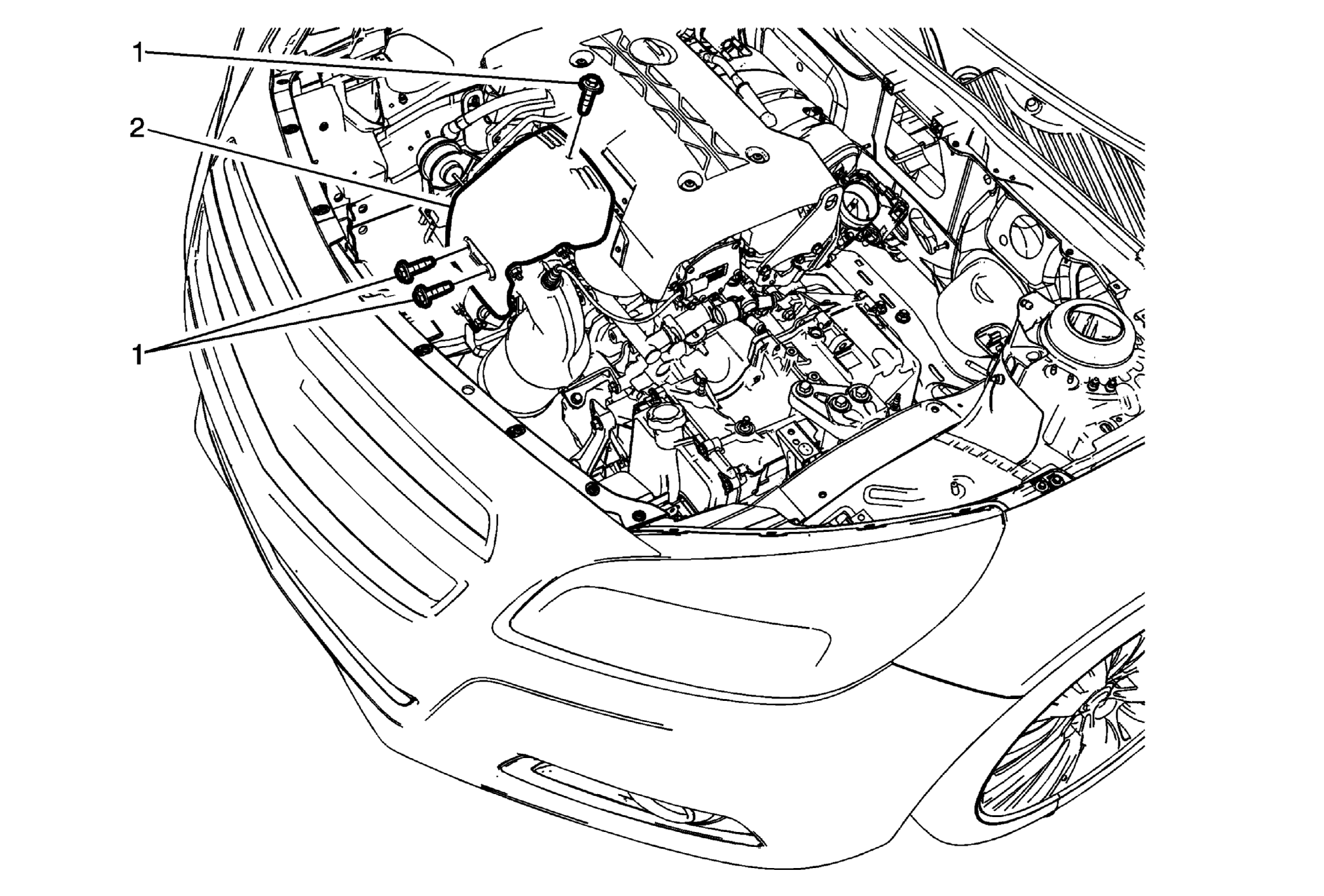

Fig 1: Turbocharger Heat Shield (LTG)
GM2862517Courtesy of GENERAL MOTORS COMPANY
Turbocharger Heat Shield Replacement (LTG)

Callout Component Name
1 Turbocharger Heat Shield Fastener (Qty: 3)
WARNING:

Refer to Exhaust Service Warning .

CAUTION:

Refer to Fastener Caution .


Tighten:
9 (80 lb in)
2 Turbocharger Heat Shield
