Radiator Support Bracket Replacement (LTG)

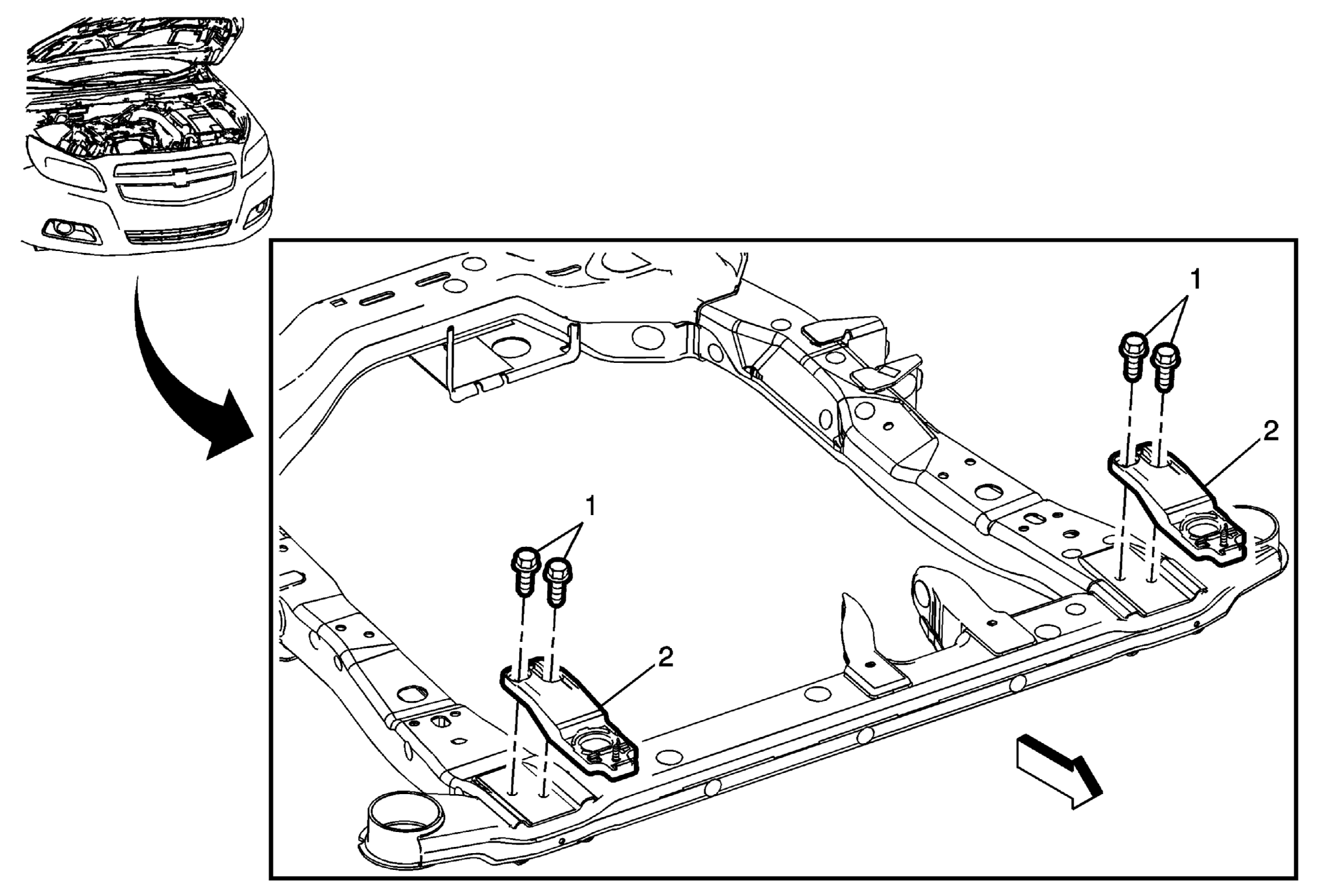

Fig 1: Radiator Support Bracket (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the radiator air side baffle and deflector retainers from the radiator lower bracket. Support the radiator assembly.
1	Radiator Support Bracket Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 22 (16 lb ft)
2	Radiator Support Bracket (Qty: 2) Procedure Remove the front bumper lower impact bar bracket and transfer all parts.

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the radiator air side baffle and deflector retainers from the radiator lower bracket.
Support the radiator assembly.

Radiator Support Bracket Fastener (Qty: 4)

CAUTION:

Tighten
22 (16 lb ft)

Radiator Support Bracket (Qty: 2)
Procedure
Remove the front bumper lower impact bar bracket and transfer all parts.
