Secondary Air Injection Check Valve Replacement (LKW)

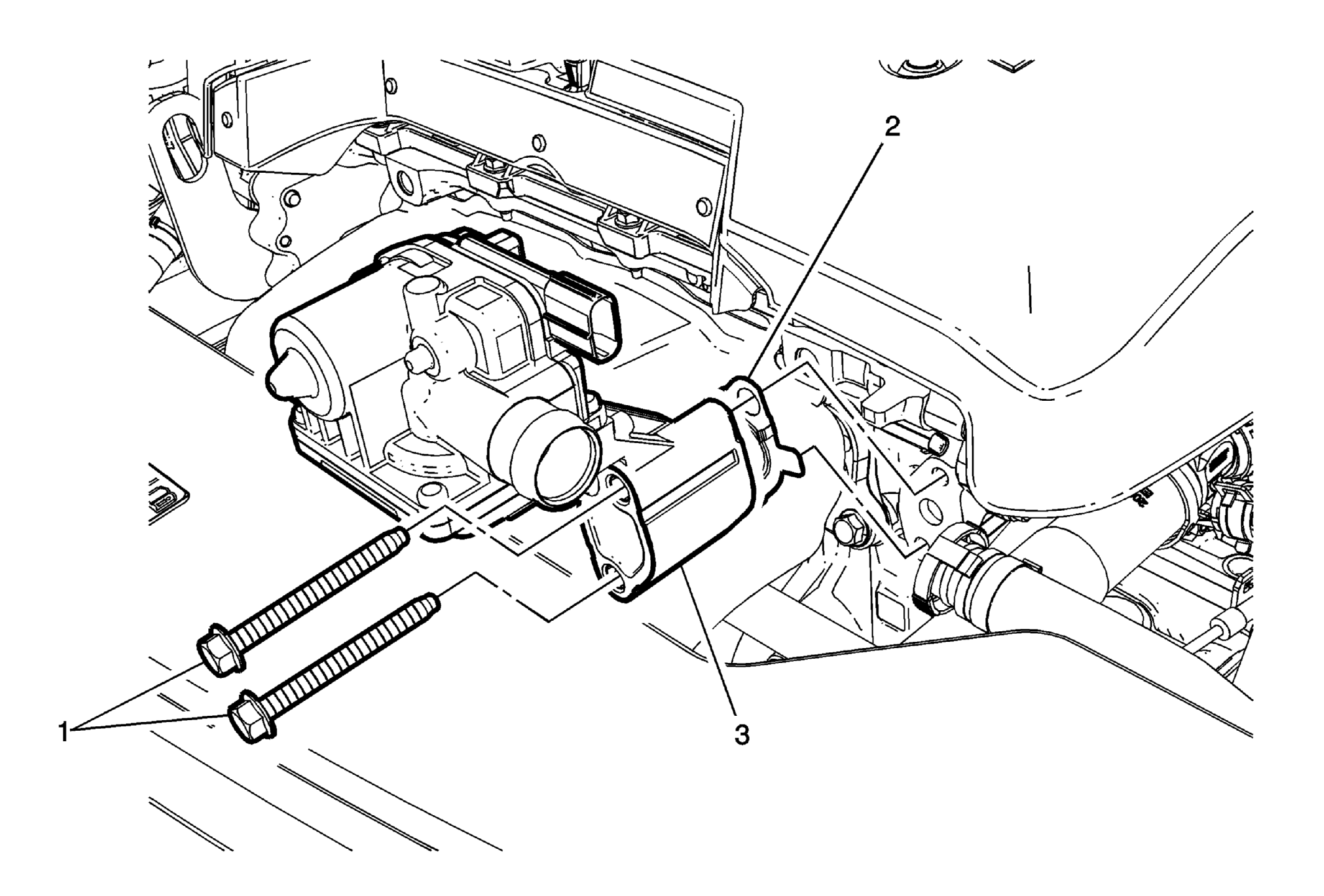

Fig 1: Secondary Air Injection Check Valve (LKW)
GM2810765Courtesy of GENERAL MOTORS COMPANY
Secondary Air Injection Check Valve Replacement (LKW)

Callout Component Name

Preliminary Procedure

  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LTG) , Intake Manifold Cover Replacement (LKW) .
  2. Disconnect the secondary air injection pipe from the secondary air injection check valve. Refer to Secondary Air Injection Feed Tube Replacement (LKW) .
1 Secondary Air Injection Check Valve Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
22 (16 lb ft)
2 Gasket
3 Secondary Air Injection Check Valve
Procedure
Disconnect the electrical wiring harness connector from the secondary air injection check valve.
