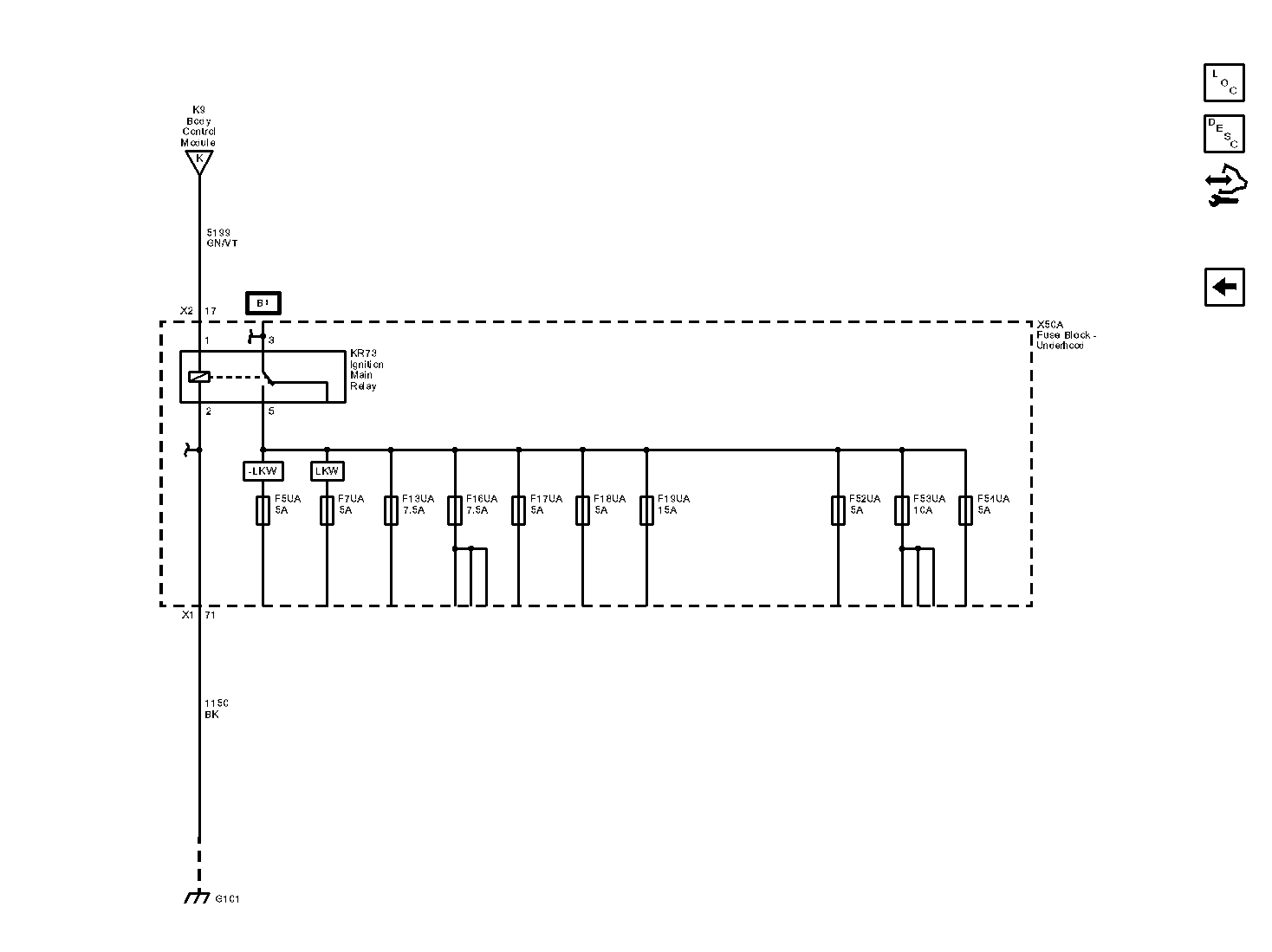

Home >> Chevrolet >> 2014 >> Malibu LS >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> Wiring Systems And Power Management - Wiring Schematic Diagrams And Wiring Harness Routing Diagrams >> Wiring Schematics Diagrams >> Power Moding Wiring Schematics >> KR73 Ignition Run Relay
