Rear Body Harness Routing

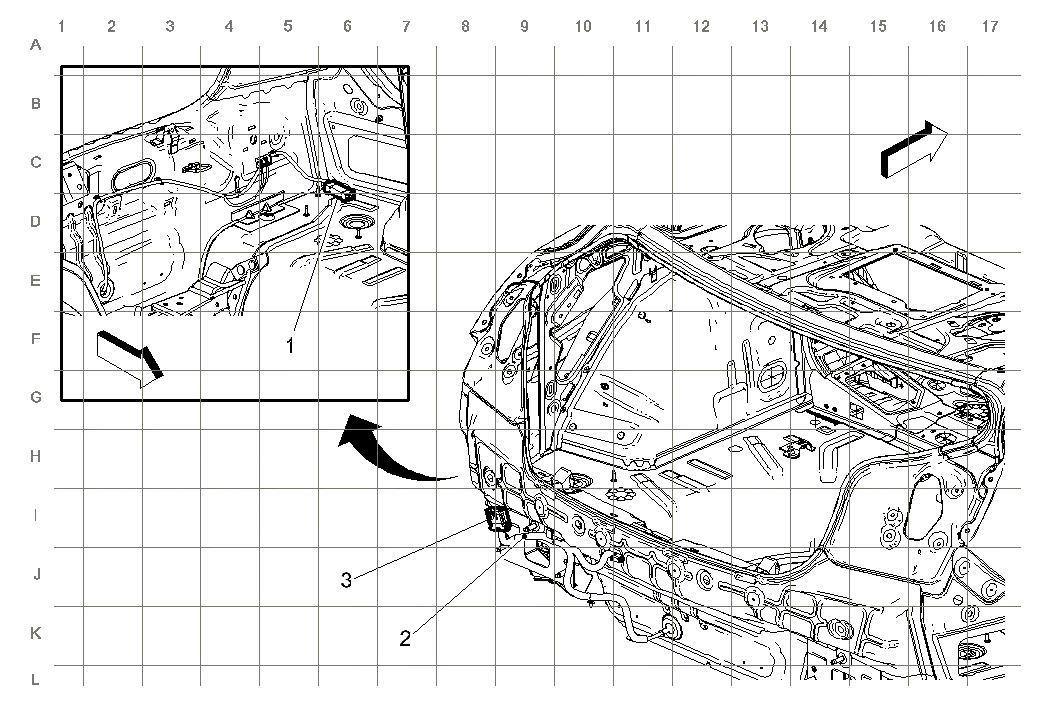

Fig 1: Rear of Vehicle Harness Routing
GM2739502Courtesy of GENERAL MOTORS COMPANY
Items
1:  X450 X450 Rear Body Harness to Body Harness
2:  J415 (UVC)
3:  X415 X415 Rear Bumper Harness to Rear Body Harness (without UFT)
