Passenger Door Harness Routing

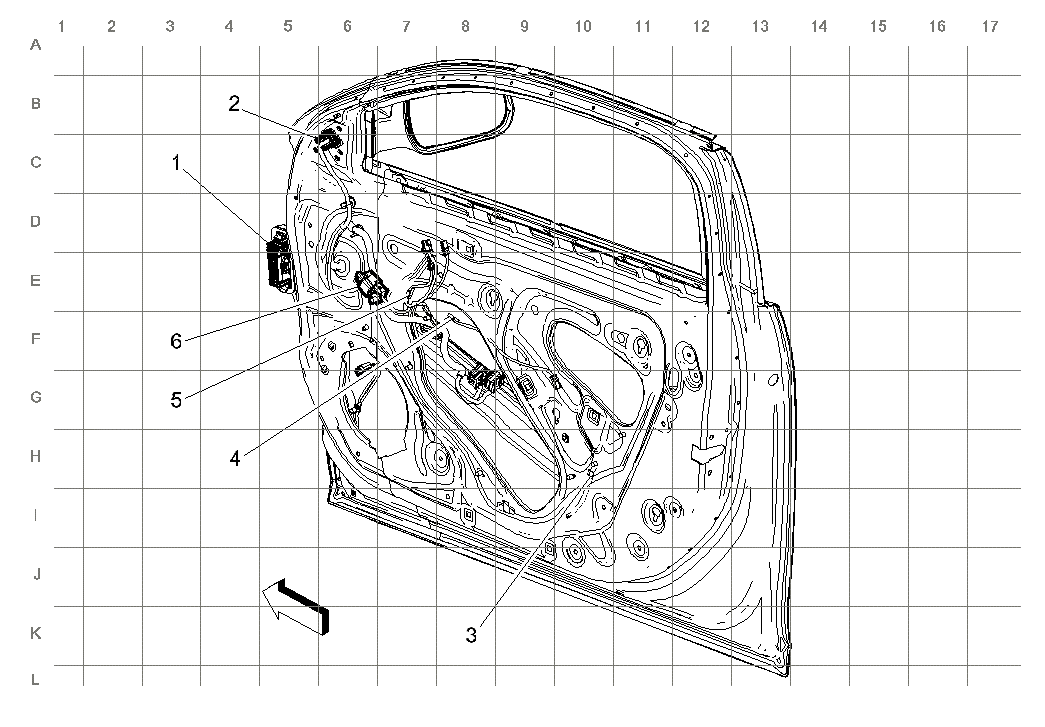

Fig 1: Passenger Door Harness Routing
GM2739684Courtesy of GENERAL MOTORS COMPANY
Items
1:  X600 X600 Passenger Door Harness to Body Harness
2:  X610 X610 Passenger Door Harness to Passenger Outside Rearview Mirror Harness
3:  J604
4:  J605
5:  J606
6:  X605 X605 Passenger Door Harness to Passenger Door Lamp Harness
