Forward Lamp Harness Routing - Left Side of Engine Compartment

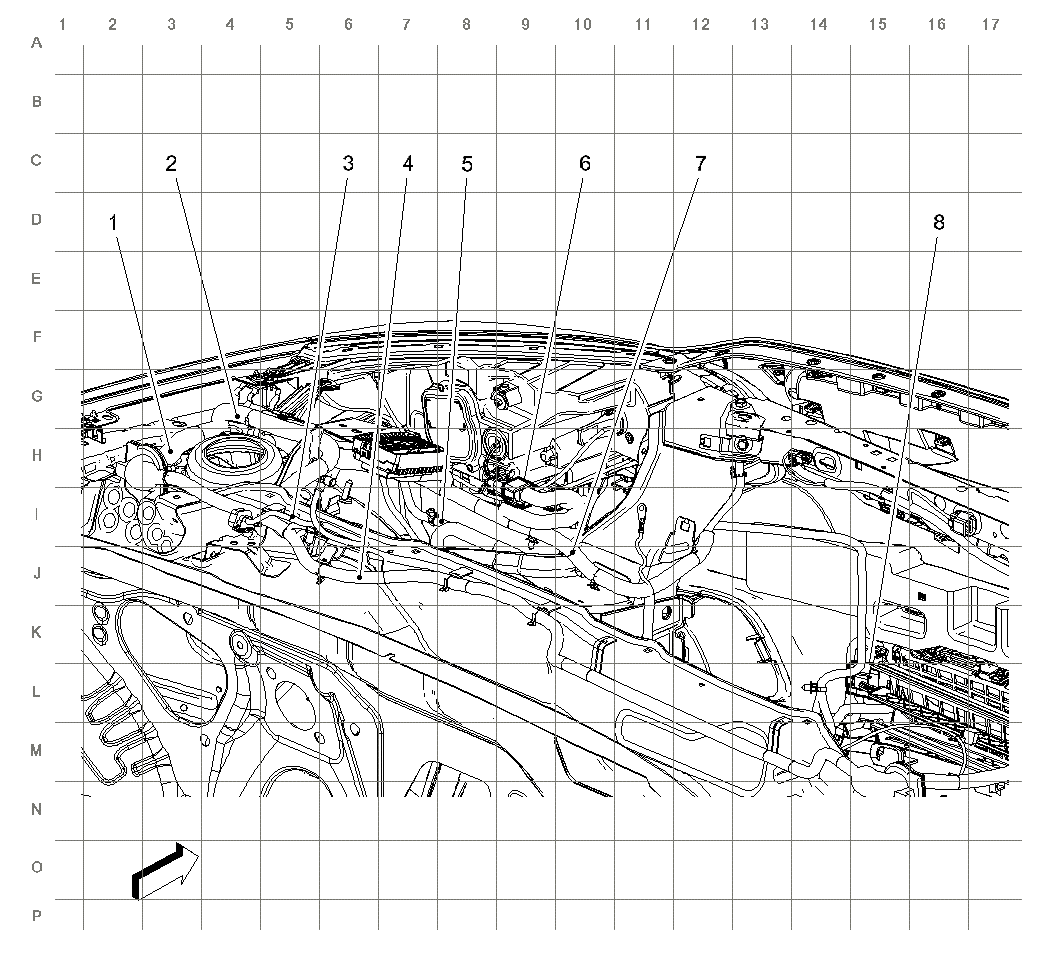

Fig 1: Left Side of Engine Compartment Harness Routing
GM2739763Courtesy of GENERAL MOTORS COMPANY
Items
1:  J115
2:  J113
3:  J114
4:  J116 (T3U)
5:  J118
6:  X110 X110 Forward Lamp Harness to Left Headlamp Harness (T4A)X110 Forward Lamp Harness to Left Headlamp Harness (T4F)
7:  J101
8:  X125 X125 Front Fascia Jumper to Forward Lamp
