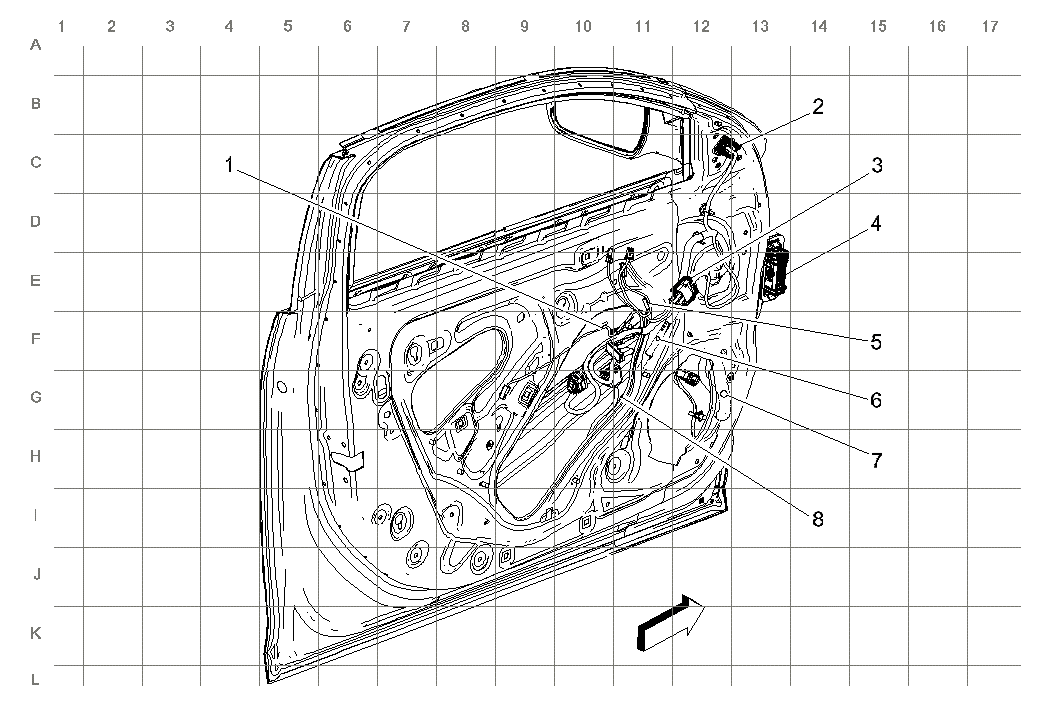

Driver Door Harness Routing
| Items |
|---|
| 1: J505 |
| 2: X510 X510 Driver Door Harness to Driver Outside Rearview Mirror Harness |
| 3: X505 X505 Driver Door Harness to Driver Door Lamp Harness |
| 4: X500 X500 Driver Door Harness to Body Harness |
| 5: J503 (AXG) |
| 6: J502 (DWS) |
| 7: J506 |
| 8: J504 |
