Body Harness Routing - Right Front of Passenger Compartment

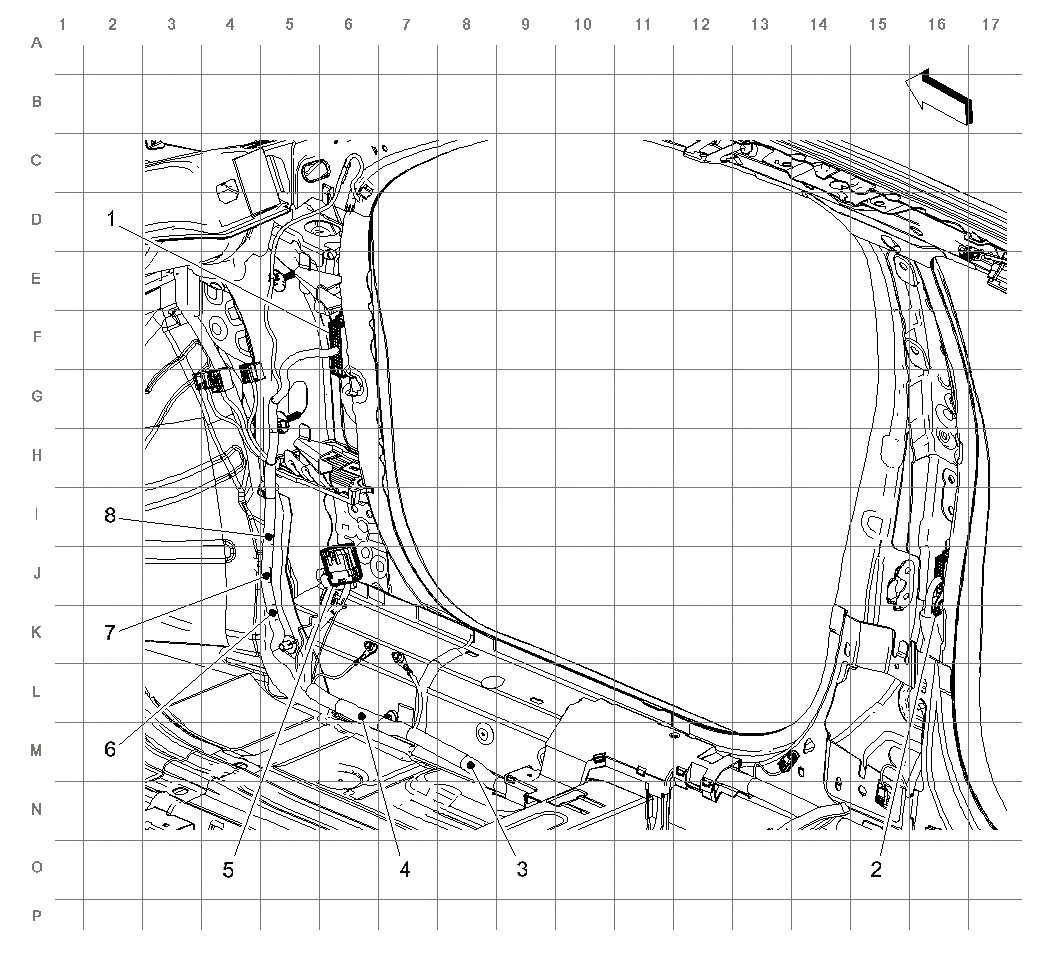

Fig 1: Right Front of Passenger Compartment Harness Routing
GM2739512Courtesy of GENERAL MOTORS COMPANY
Items
1:  X600 X600 Passenger Door Harness to Body Harness
2:  X800 X800 Right Rear Door Harness to Body Harness
3:  J308
4:  J302
5:  X220 (UQA or UVC) X220 Instrument Panel Harness to Body Harness (UQA or UVC)
6:  J236
7:  J209 (KTA or UPH)
8:  J208 (KTA or UPH)
