Body Harness Routing - Left Rear Passenger Compartment

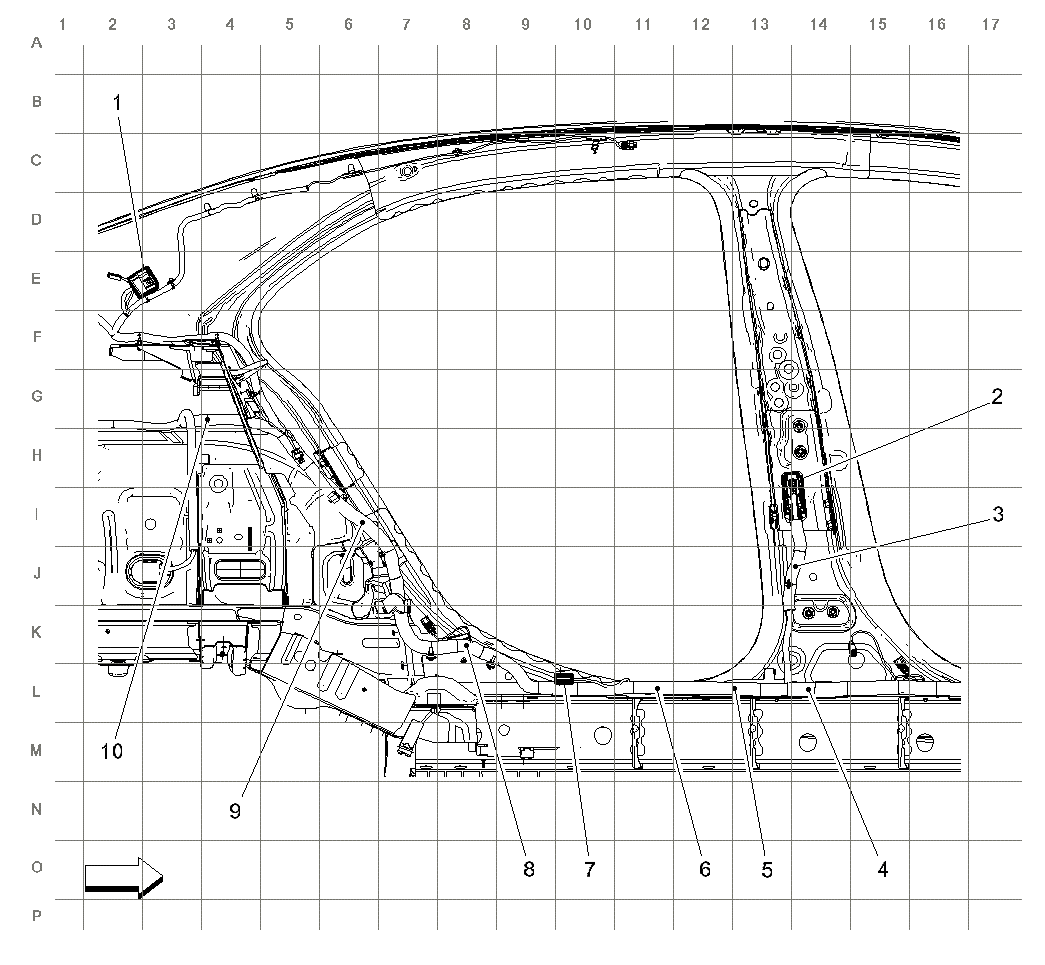

Fig 1: Left Rear Passenger Compartment Harness Routing
GM2739524Courtesy of GENERAL MOTORS COMPANY
Items
1:  X400 X400 Headliner Harness to Body Harness
2:  X700 X700 Left Rear Door Harness to Body Harness
3:  J324
4:  J339 (TSQ with 1LT, 2LT, or 1LZ)
5:  J333 (TSQ with 1LT, 2LT, or 1LZ)
6:  J322
7:  JX300 (A45, ATS, KA6, UD7 or UFL)
8:  J326
9:  J318
10:  J401
