Body Harness Routing - Left Front of Passenger Compartment

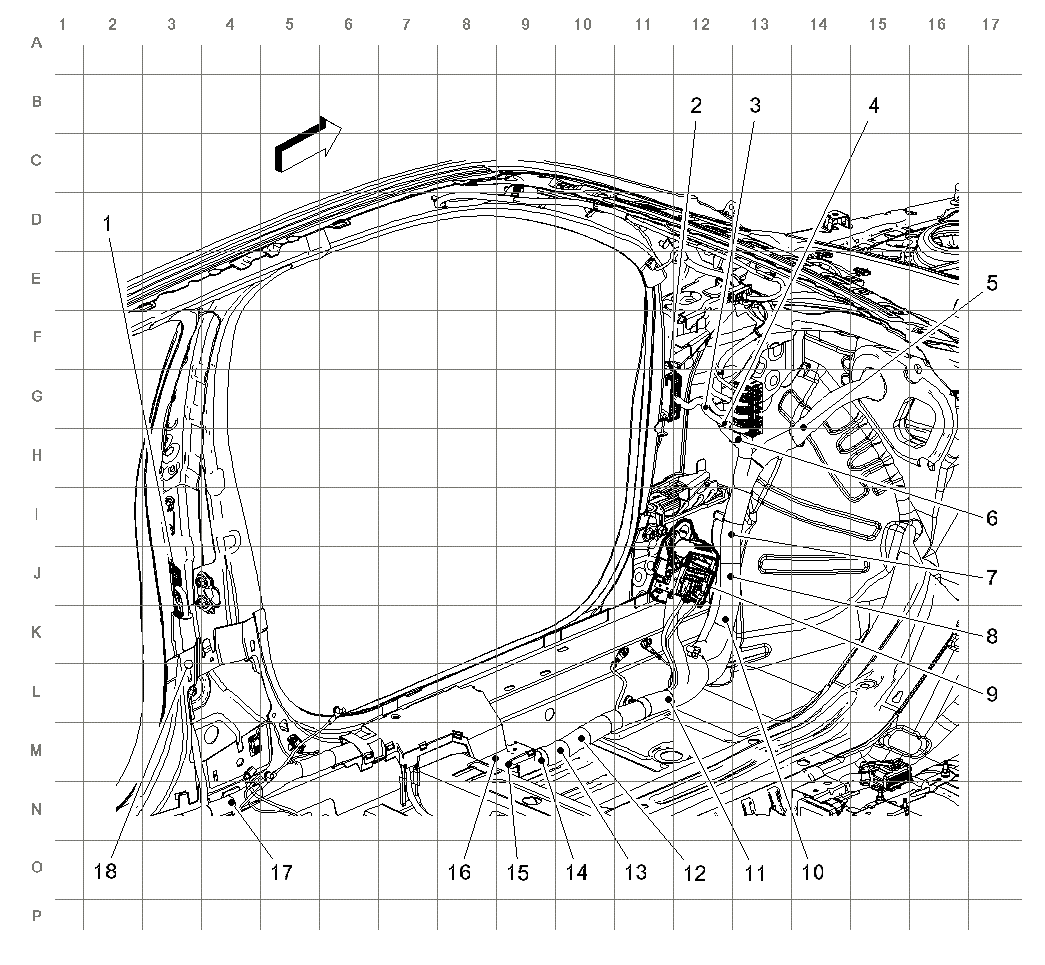

Fig 1: Left Front of Passenger Compartment Harness Routing

Courtesy of GENERAL MOTORS COMPANY

Items
1:  X700 X700 Left Rear Door Harness to Body Harness
2:  X500 X500 Driver Door Harness to Body Harness
3:  J223 (UQA)
4:  J231
5:  J221
6:  J232
7:  J235 (CE1 with UD7)
8:  J219
9:  X210 X210 Instrument Panel Harness to Body Harness
10:  J218
11:  J233
12:  J305
13:  J304
14:  J321
15:  J329
16:  J330 (KA6)
17:  J339 (TSQ with 1LT, 2LT, or 1LZ)
18:  J324
