Body Harness Routing - Floor of Passenger Compartment

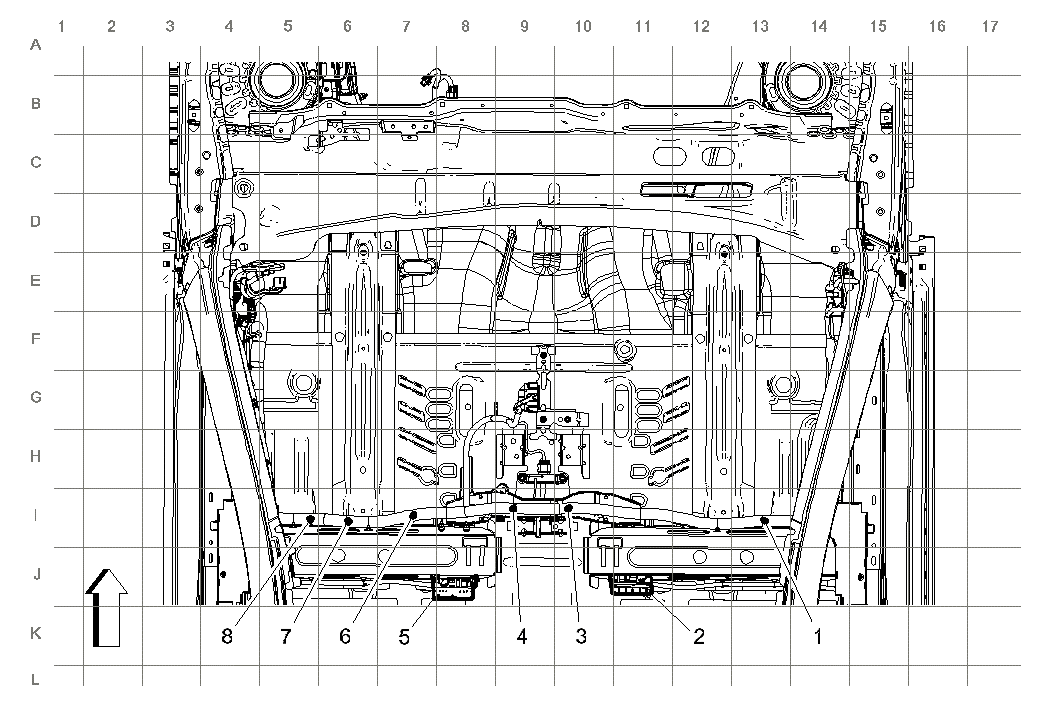

Fig 1: Floor of Passenger Compartment Harness Routing
GM2739514Courtesy of GENERAL MOTORS COMPANY
Items
1:  J325
2:  X320 X320 Body Harness to Passenger Seat Harness
3:  J320
4:  J327
5:  X310 X310 Body Harness to Driver Seat Harness
6:  J332 (A45)
7:  J328
8:  J319
