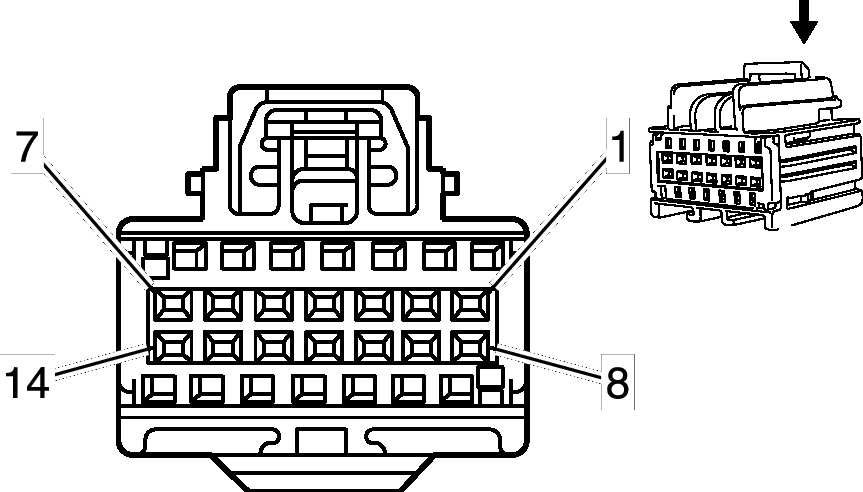

K59 Starter/Generator Control Module X1 Connector End View (HP6)
|
|
Connector Part Information
- Harness Type: Body Harness
- OEM connector: 15491263
- Service connector: 15127038
- Description: 14-Way F Kaizen 64 Series BU
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13579944 |
J-35616-64B (L-BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13575864 |
J-35616-64B (L-BU) |
J-38125-215A |
SAIT-A03GF-M064 |
27-17 |
P |
P |
| III |
13505805 |
J-35616-64B (L-BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
K59 Starter/Generator Control Module X1 Connector End View (HP6)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BARE |
2958 |
Resolver Cosine Signal Drain Wire |
I |
- |
| 2 |
0.5 |
BARE |
2959 |
Resolver Sine Signal Drain Wire |
I |
- |
| 3 |
0.5 |
BARE |
2955 |
Three Phase Motor Temperature Drain Wire |
I |
- |
| 4 |
0.5 |
BK/BU |
2956 |
Three Phase Motor Temperature Low Reference |
II |
- |
| 5 |
0.5 |
BK |
2957 |
Three Phase Motor Temperature Signal |
II |
- |
| 6 |
0.35 |
YE |
5530 |
Hood Open Switch Signal |
I |
- |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.75 |
YE |
7617 |
Resolver Signal #2 |
III |
- |
| 9 |
0.75 |
BN/GN |
7615 |
Resolver Signal #4 |
III |
- |
| 10 |
0.75 |
BN |
7618 |
Resolver Signal #1 |
III |
- |
| 11 |
0.75 |
BU/VT |
7616 |
Resolver Signal #3 |
III |
- |
| 12 |
0.75 |
WH |
7619 |
Resolver Motor Positive |
III |
- |
| 13 |
0.5 |
BARE |
2960 |
Resolver Motor Drain Wire |
I |
- |
| 14 |
0.75 |
GY |
7620 |
Resolver Motor Negative |
III |
- |
