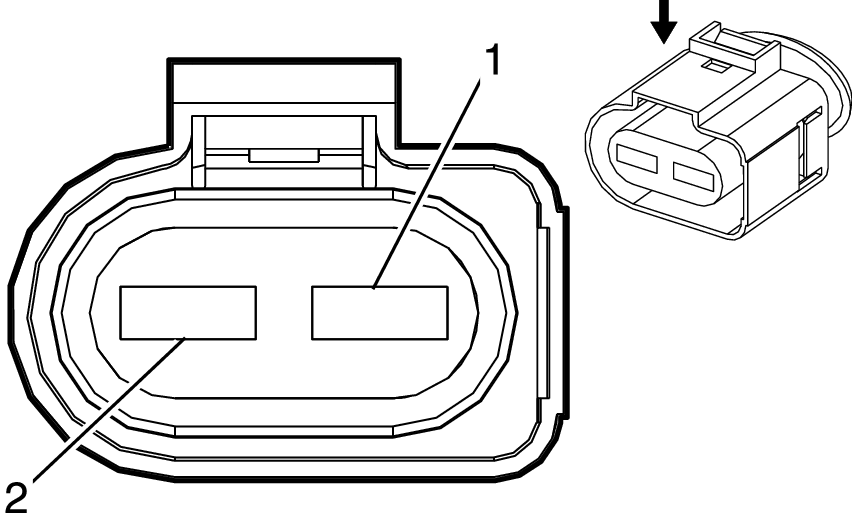

K43 Power Steering Control Module X2 Connector End View
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available |
K43 Power Steering Control Module X2 Connector End View
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 10 | BK | 750 | Ground | I | - |
| 2 | 10 10 |
RD/WH RD/YE |
1142 1142 |
Battery Positive Voltage Battery Positive Voltage |
I | LUK LCV/LTG |
