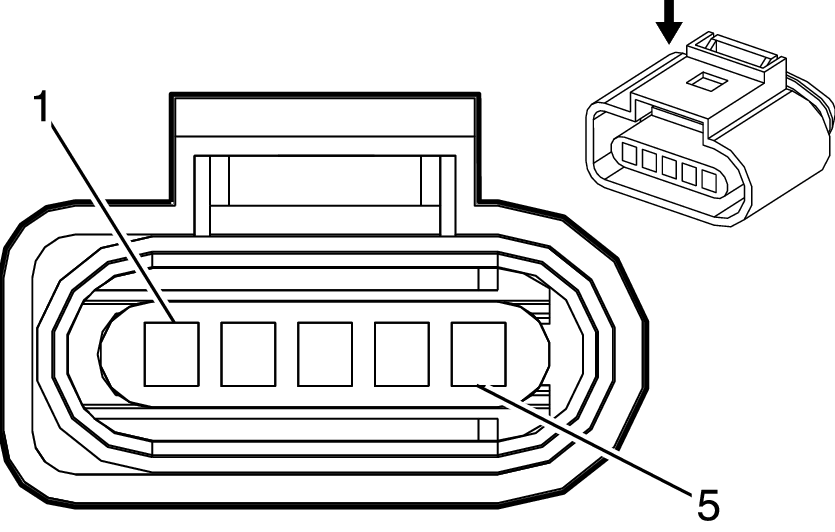

K43 Power Steering Control Module X1 Connector End View
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13578874 | J-35616-14 (GN) | J-38125-560 | 964274-2 | 16- | E | 1 |
K43 Power Steering Control Module X1 Connector End View
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 | WH/BU | 5986 | Serial Data Communication Enable | I | - |
| 2 | 0.5 | BU | 2500 | High Speed GMLAN Serial Data (+) (1) | I | - |
| 3 | 0.5 0.5 |
YE/BK BU |
2500 2500 |
High Speed GMLAN Serial Data (+) (1) High Speed GMLAN Serial Data (+) (1) |
I | LUK LCV/LTG |
| 4 | 0.5 | WH | 2501 | High Speed GMLAN Serial Data (-) (1) | I | - |
| 5 | 0.5 0.5 |
YE WH |
2501 2501 |
High Speed GMLAN Serial Data (-) (1) High Speed GMLAN Serial Data (-) (1) |
I | LUK LCV/LTG |
