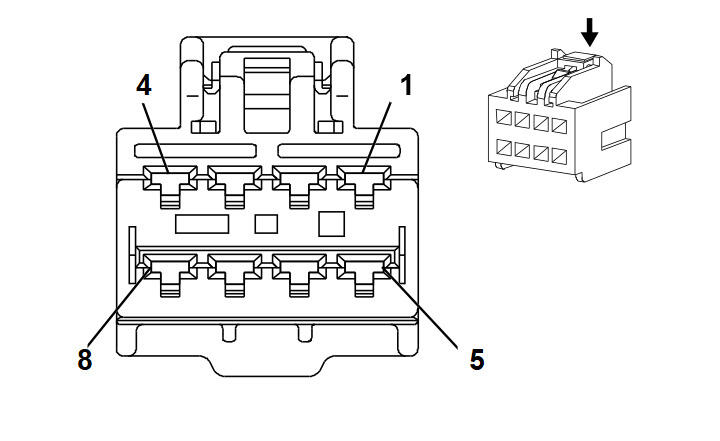

K40 Seat Memory Control Module X5 Connector End View (A45)
|
|
Connector Part Information
- Harness Type: Driver Seat Harness
- OEM connector: 6098-4713
- Service connector: 13580111
- Description: 8-Way F 2.8 Series BK
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
K40 Seat Memory Control Module X5 Connector End View (A45)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
GY/GN |
284 |
Driver Power Seat Horizontal Motor Rearward Control |
I |
- |
| 2 |
1 |
YE/BU |
285 |
Driver Power Seat Horizontal Motor Forward Control |
I |
- |
| 3 |
1 |
GY/BU |
283 |
Driver Power Seat Rear Vertical Motor Down Control |
I |
- |
| 4 |
1 |
YE |
282 |
Driver Power Seat Rear Vertical Motor Up Control |
I |
- |
| 5 |
1 |
GN/YE |
276 |
Driver Power Seat Recline Motor Forward Control |
I |
- |
| 6 |
1 |
BU/YE |
277 |
Driver Power Seat Recline Motor Rearward Control |
I |
- |
| 7 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
