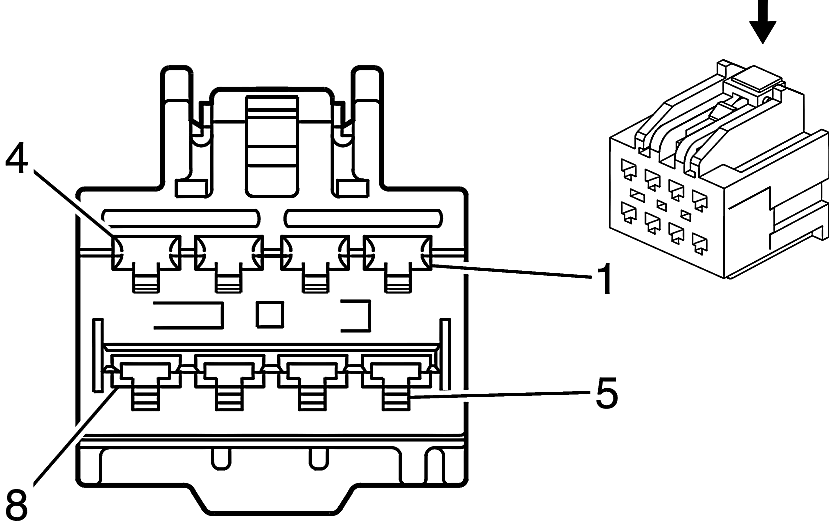

K40 Seat Memory Control Module X4 Connector End View (A45)
|
|
Connector Part Information
- Harness Type: Driver Seat Harness
- OEM connector: 6098-4798
- Service connector: 19115652
- Description: 8-Way F 2.8 Series L-GY
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
K40 Seat Memory Control Module X4 Connector End View (A45)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
RD/GN |
5140 |
Battery Positive Voltage |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
2.5 |
BK |
2150 |
Ground |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
1.5 |
RD/YE |
5040 |
Battery Positive Voltage |
I |
- |
| 6 |
2.5 |
BK |
2150 |
Ground |
I |
- |
| 7 |
1 |
GN/BN |
286 |
Driver Power Seat Front Vertical Motor Up Control |
I |
- |
| 8 |
1 |
BU/VT |
287 |
Driver Power Seat Front Vertical Motor Down Control |
I |
- |
