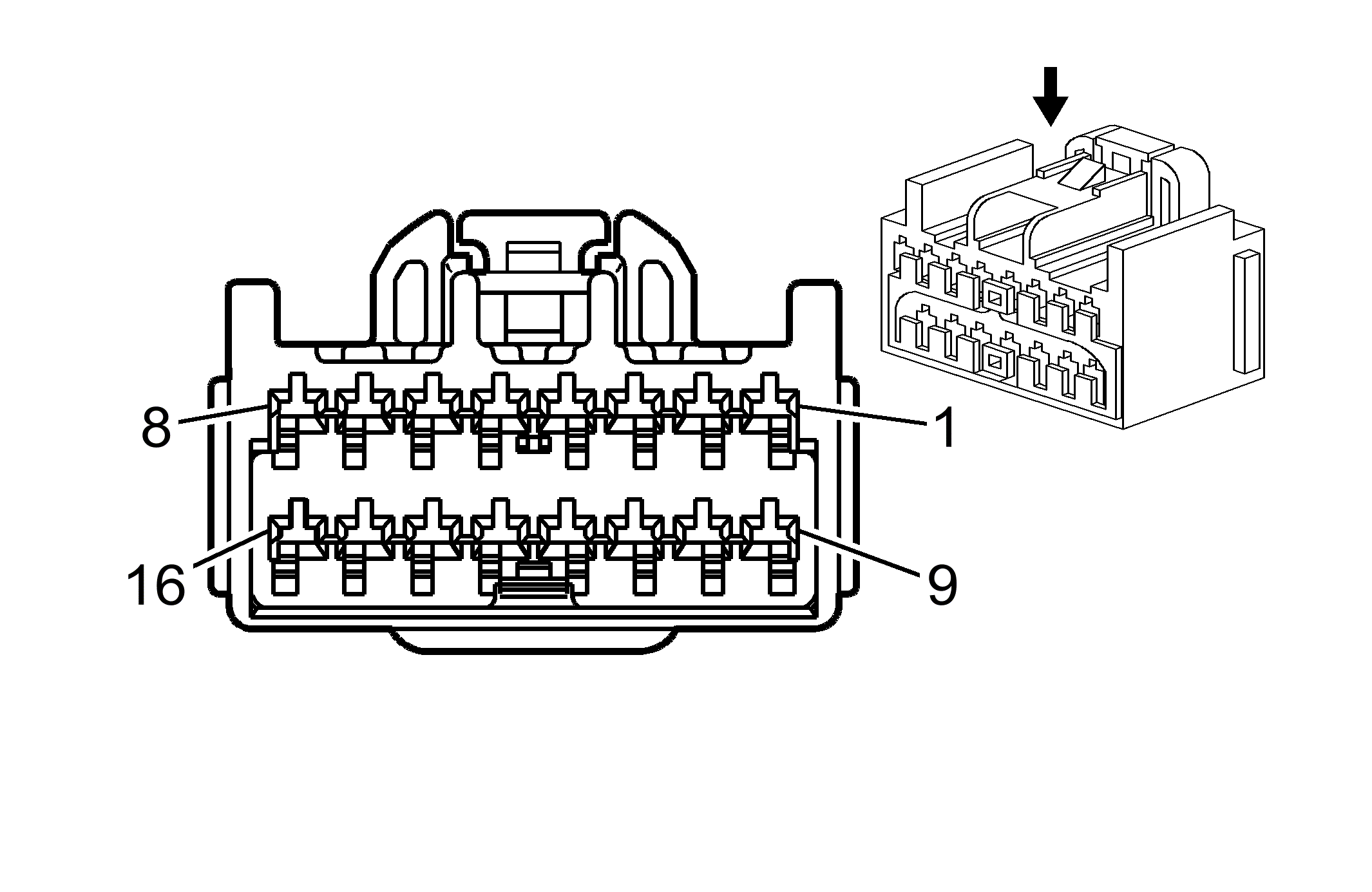

K40 Seat Memory Control Module X3 Connector End View (A45)
|
|
Connector Part Information
- Harness Type: Driver Seat Harness
- OEM connector: 7283-6453-60
- Service connector: 15134091
- Description: 16-Way F 1.5 Series GN
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
K40 Seat Memory Control Module X3 Connector End View (A45)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/GY |
2435 |
Passenger Heated Seat NTC Low Reference |
I |
- |
| 2 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
1 |
BU/BK |
2433 |
Passenger Heated Back Element Return |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.75 |
VT/BK |
2424 |
Driver Heated Back Element Return |
I |
- |
| 7 |
0.35 |
BK/BU |
5978 |
Memory Switch Low Reference |
I |
- |
| 8 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
1 |
BN/BU |
2479 |
Passenger Heated Seat Element Supply Voltage |
I |
- |
| 11 |
0.75 |
BN/VT |
2077 |
Driver Heated Seat Element Supply Voltage |
I |
- |
| 12 |
0.5 |
BK/YE |
2080 |
Driver Heated Seat NTC Low Reference |
I |
- |
| 13 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
