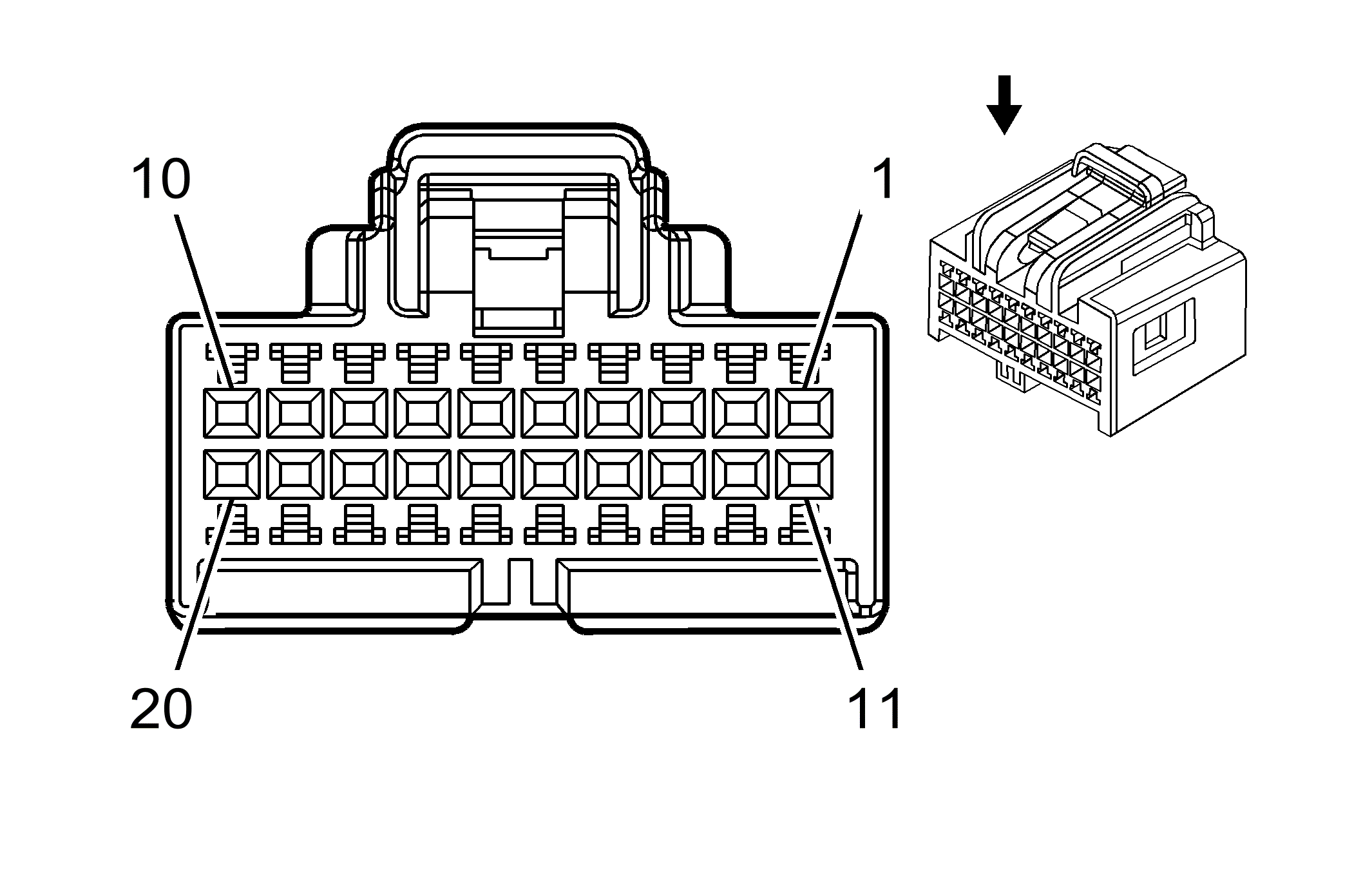

K33 HVAC Control Module X2 Connector End View
|
|
Connector Part Information
- Harness Type: Instrument Panel Harness
- OEM connector: 13782501
- Service connector: 13578572
- Description: 20-Way F Micro HVT Series BN
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13575549 |
J-35616-16 (L-GN) |
J-38125-559 |
15445905 |
23- |
J |
J |
| II |
13584453 |
J-35616-16 (L-GN) |
J-38125-559 |
Not Available |
Not Available |
Not Available |
Not Available |
K33 HVAC Control Module X2 Connector End View
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD/VT |
3340 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
GN/YE |
7531 |
Linear Interconnect Network Bus 9 |
I |
- |
| 5 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.5 |
BK |
1650 |
Ground |
I |
- |
| 9 |
0.35 |
VT/GY |
539 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 10 |
0.35 |
BU/GN |
7574 |
Electric Variable Displacement Control |
I |
- |
| 11 |
0.35 |
BU |
7573 |
Electric Variable Displacement Supply |
I |
- |
| 12 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.13 |
D-BU |
754 |
Blower Motor Speed Control |
II |
- |
| 16 - 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.13 |
BN |
6102 |
Inside Air Temperature Sensor Low Reference |
II |
- |
| 19 |
0.35 |
BN/VT |
193 |
Rear Defog Relay Control |
I |
- |
| 20 |
- |
- |
- |
Not Occupied |
- |
- |
