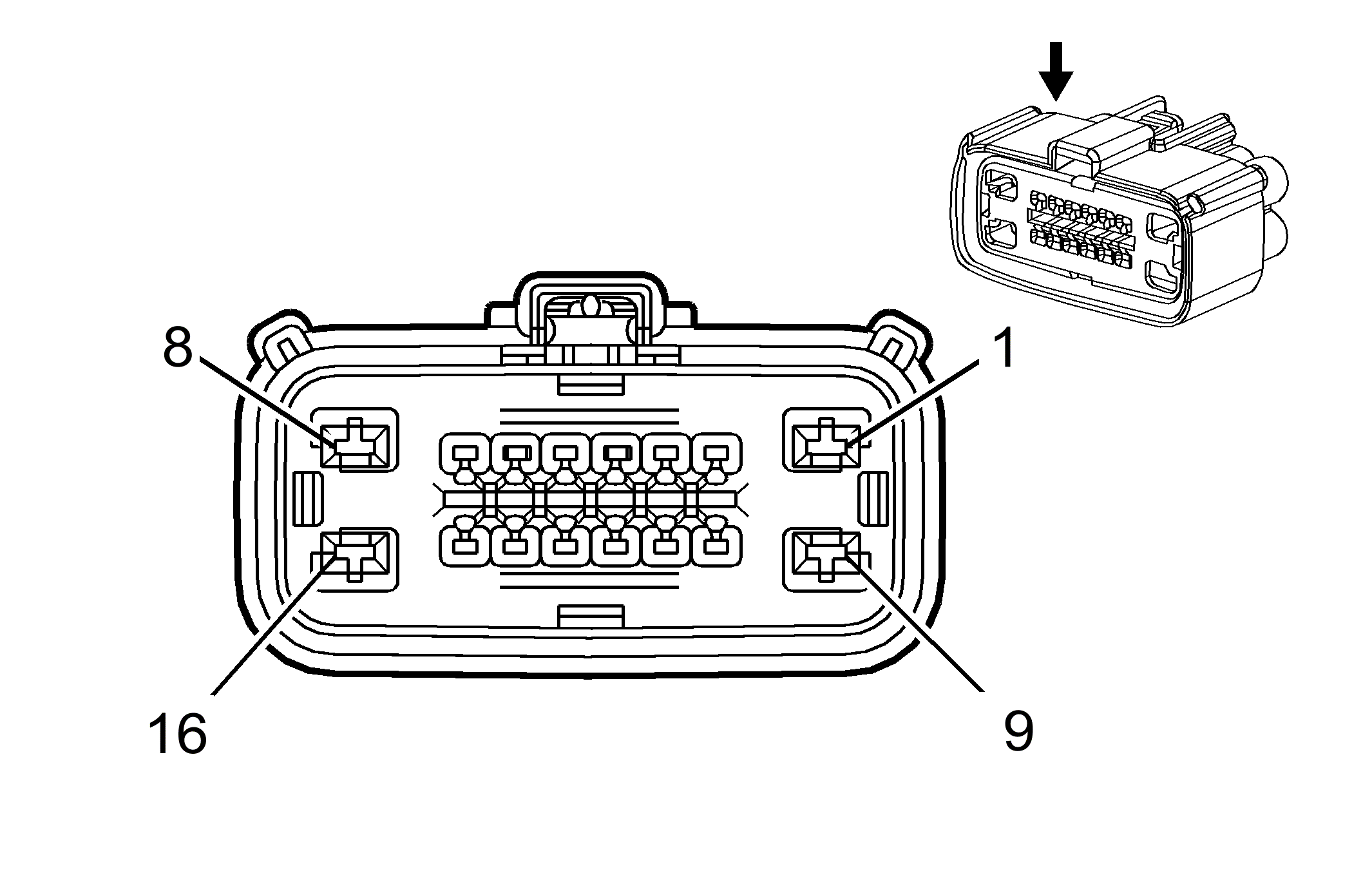

K111 Fuel Pump Driver Control Module Connector End View (LKW or LTG)

GM2498541

Connector Part Information

Harness Type: Body Harness
OEM connector: 15456951
Service connector: Pending
Description: 16-Way F 1.5, 2.8 Series, Sealed BK

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13576375	J-35616-35 (VT)	J-38125-12A	1326030-8	17-13	4	D
II	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available
III	13575808	J-35616-14 (GN)	J-38125-217	Not Available	Not Available	E	2
IV	13575809	J-35616-14 (GN)	J-38125-217	Not Available	Not Available	E	2
V	13579750	J-35616-35 (VT)	J-38125-12A	1326030-6	17-12	Not Available	Not Available

K111 Fuel Pump Driver Control Module Connector End View (LKW or LTG)

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	2.5	RD/VT	2640	Battery Positive Voltage	I	-
2	0.35	GY	5660	Fuel Pump Controller Data Out Signal	II	-
3	-	-	-	Not Occupied	-	-
4	0.5	BU/BK	7493	High Speed GMLAN Serial Data (+)(3)	III	-
5	0.5	WH	7494	High Speed GMLAN Serial Data (-)(3)	III	-
6	0.35	VT/BK	2139	Run/Crank Ignition 1 Voltage	IV	-
7	0.35	VT/YE	5985	Accessory Wakeup Serial Data	IV	-
8	2.5	GY	120	Fuel Pump Supply Voltage	I	-
9	1.5	BK	2650	Ground	V	-
10	-	-	-	Not Occupied	-	-
11	0.5	BU/BK	7493	High Speed GMLAN Serial Data (+)(3)	III	-
12	0.5	BU/BK	7493	High Speed GMLAN Serial Data (+)(3)	III	-
13	0.5	WH	7494	High Speed GMLAN Serial Data (-)(3)	III	-
14	0.5	WH	7494	High Speed GMLAN Serial Data (-)(3)	III	-
15	0.5	BU	7443	Fuel System Control Module Shield Extension	III	-
16	2.5	BK/BU	1580	Fuel Pump Low Reference	I	-
