Front Seat Belt Anchor Plate Tensioner Cover Replacement

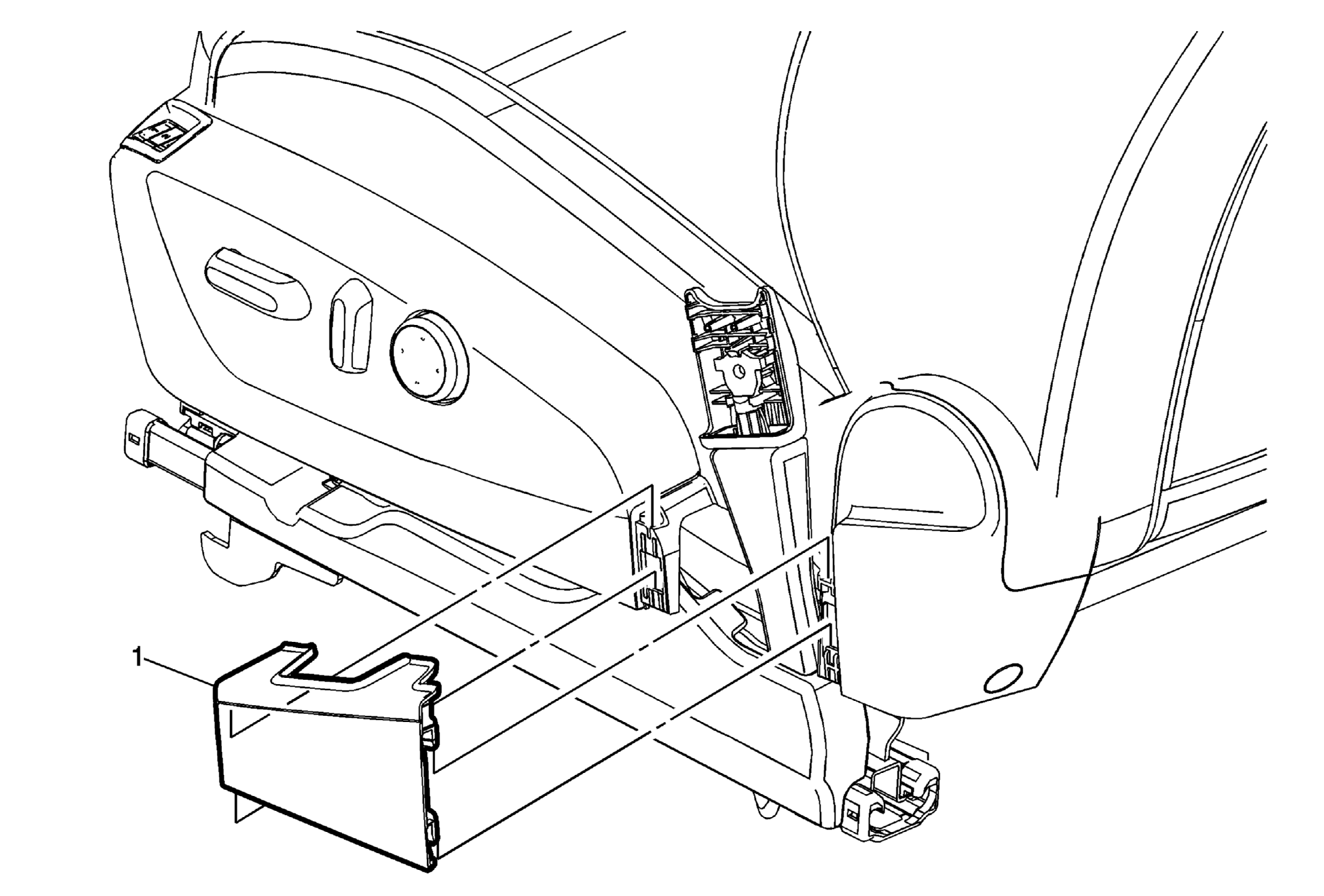

Fig 1: Front Seat Belt Anchor Plate Tensioner Cover

Courtesy of GENERAL MOTORS COMPANY

Front Seat Belt Anchor Plate Tensioner Cover Replacement

Callout	Component Name
1	Front Seat Belt Anchor Plate Tensioner Cover Procedure  To remove the front seat belt anchor plate tensioner cover move the driver or passenger seat full forward and move the high adjuster in middle position and pull the cover upward.
