Underbody Rear Air Deflector Replacement - Left Side
Underbody Rear Air Deflector Replacement - Left Side

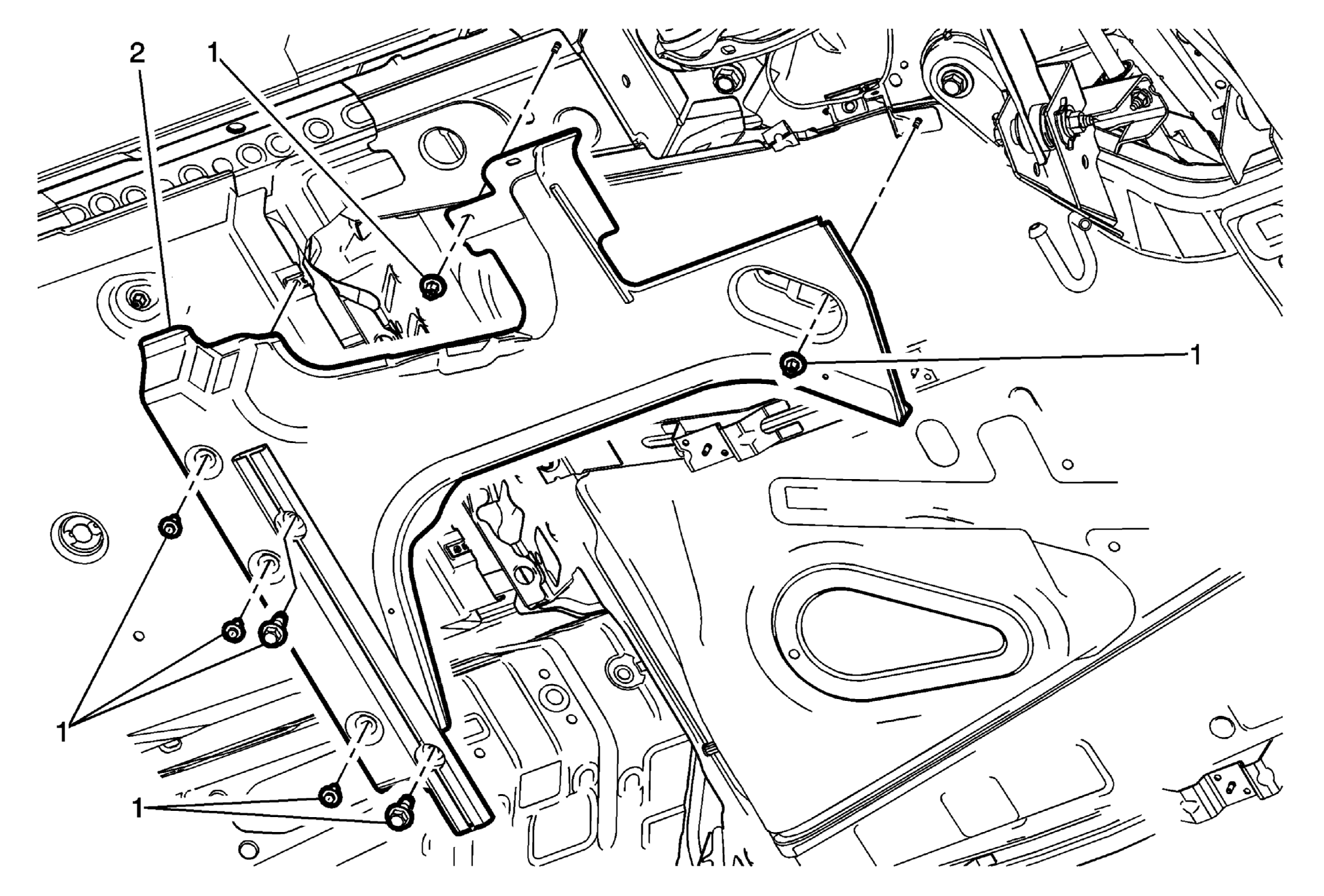

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.Do not use a service jack to lift this vehicle. Lifting the vehicle with a jack could cause the vehicle to slip off the jack and roll; this could cause injury or death. |
|
| 1 | Underbody Front Air Deflector Fasteners (Qty 7)
CAUTION:
Refer to Fastener Caution . |
| 2 | Underbody Left rear Air Deflector |
