Windshield Side Garnish Molding Replacement

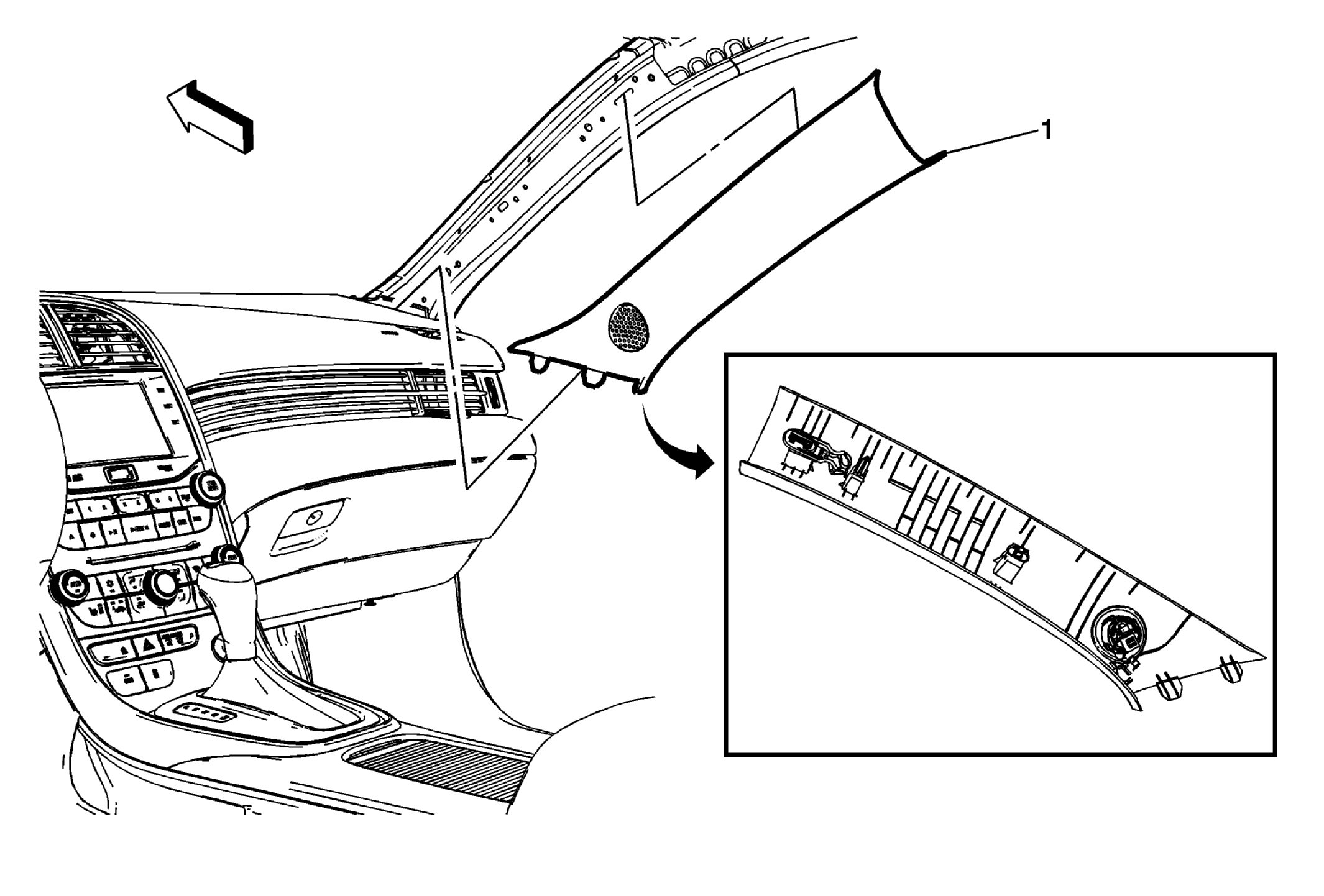

Fig 1: Windshield Side Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system, if equipped. Refer to SIR Disabling and Enabling .
1	Windshield Side Garnish Molding Assembly Procedure Tabs must be installed prior to retainers. Tabs to be fully seated in the instrument panel (I/P) trim panel retainer and valance panel. Disconnect the electrical connectors. Ensure the tether is reattached when installed.

Callout

Component Name

Preliminary Procedures
Disable the SIR system, if equipped. Refer to SIR Disabling and Enabling .

Windshield Side Garnish Molding Assembly

Procedure

Tabs must be installed prior to retainers.
Tabs to be fully seated in the instrument panel (I/P) trim panel retainer and valance panel.
Disconnect the electrical connectors.
Ensure the tether is reattached when installed.
