Sunshade Support Replacement

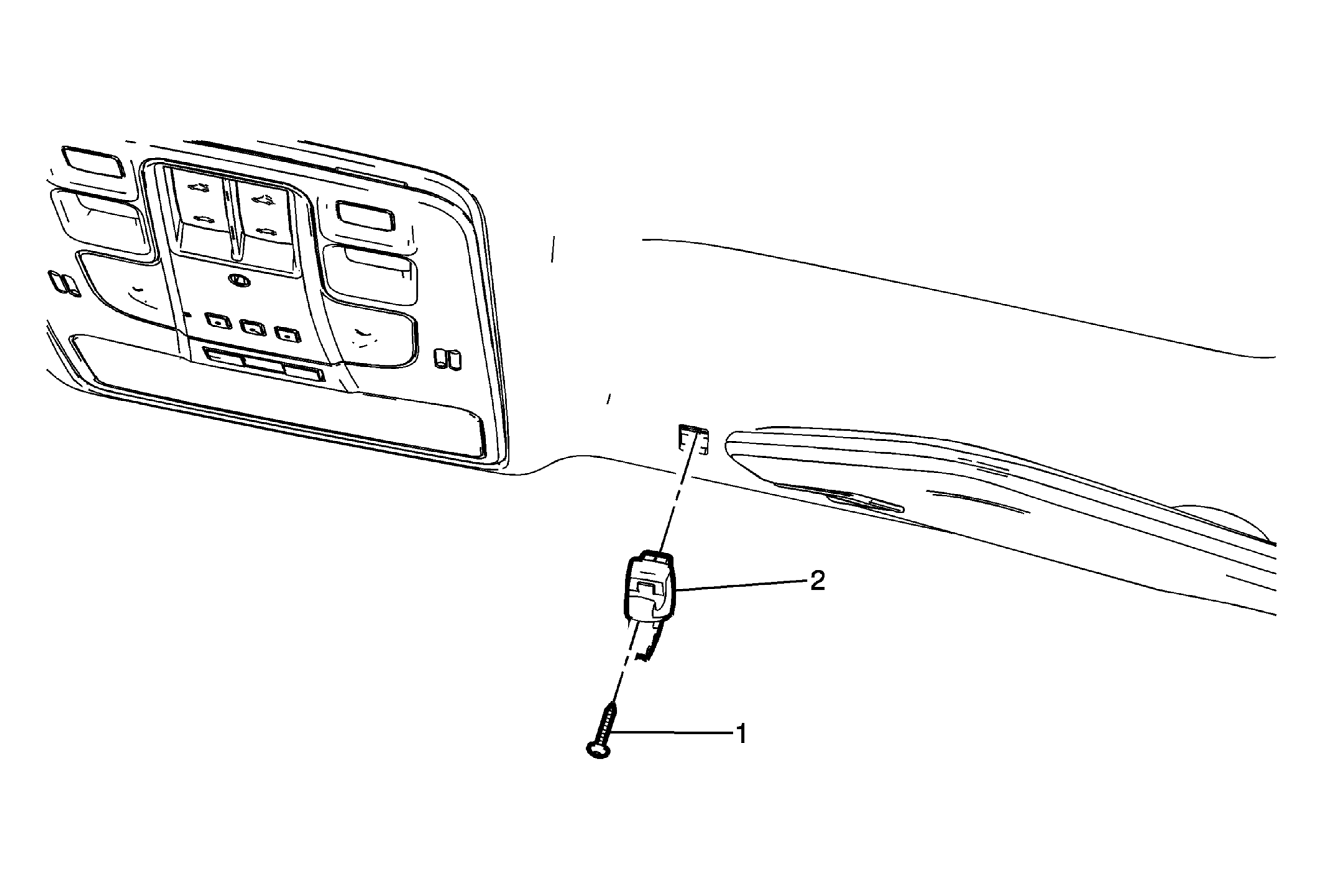

Fig 1: Sunshade Support
GM2576633Courtesy of GENERAL MOTORS COMPANY
Sunshade Support Replacement

Callout Component Name
1 Sunshade Support Fastener
CAUTION:

Refer to Fastener Caution .

NOTE:

Pull the cover downward to access the fastener.
2 Sunshade Support Assembly
Procedure
Unclip the sunshade from the support and reposition.
