Sunshade Replacement

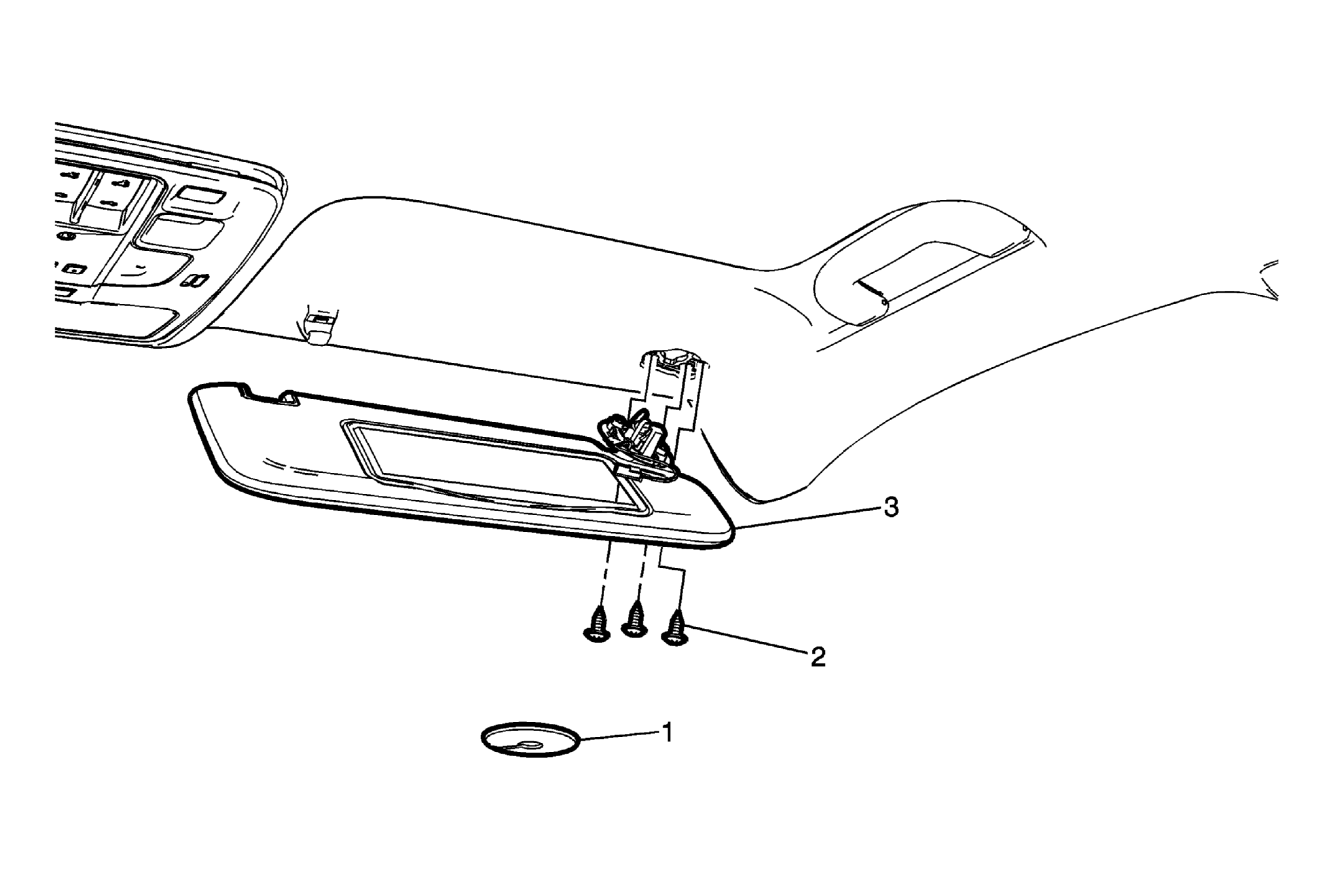

Fig 1: Sunshade Assembly & Fasteners
GM2576632Courtesy of GENERAL MOTORS COMPANY
Sunshade Replacement

Callout Component Name
Preliminary Procedure
Lower the front of the headliner to access the sunshade electrical connector, if necessary. Refer to Headlining Trim Panel Replacement (Without Sunroof) , Headlining Trim Panel Replacement (With Sunroof) .
1 Sunshade Cover
2 Sunshade Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .
3 Sunshade Assembly

Procedure

  1. Squeeze the tabs at the base of the sunshade assembly to remove from the headliner.
  2. Disconnect the electrical connector.
