Rear Side Door Trim Replacement

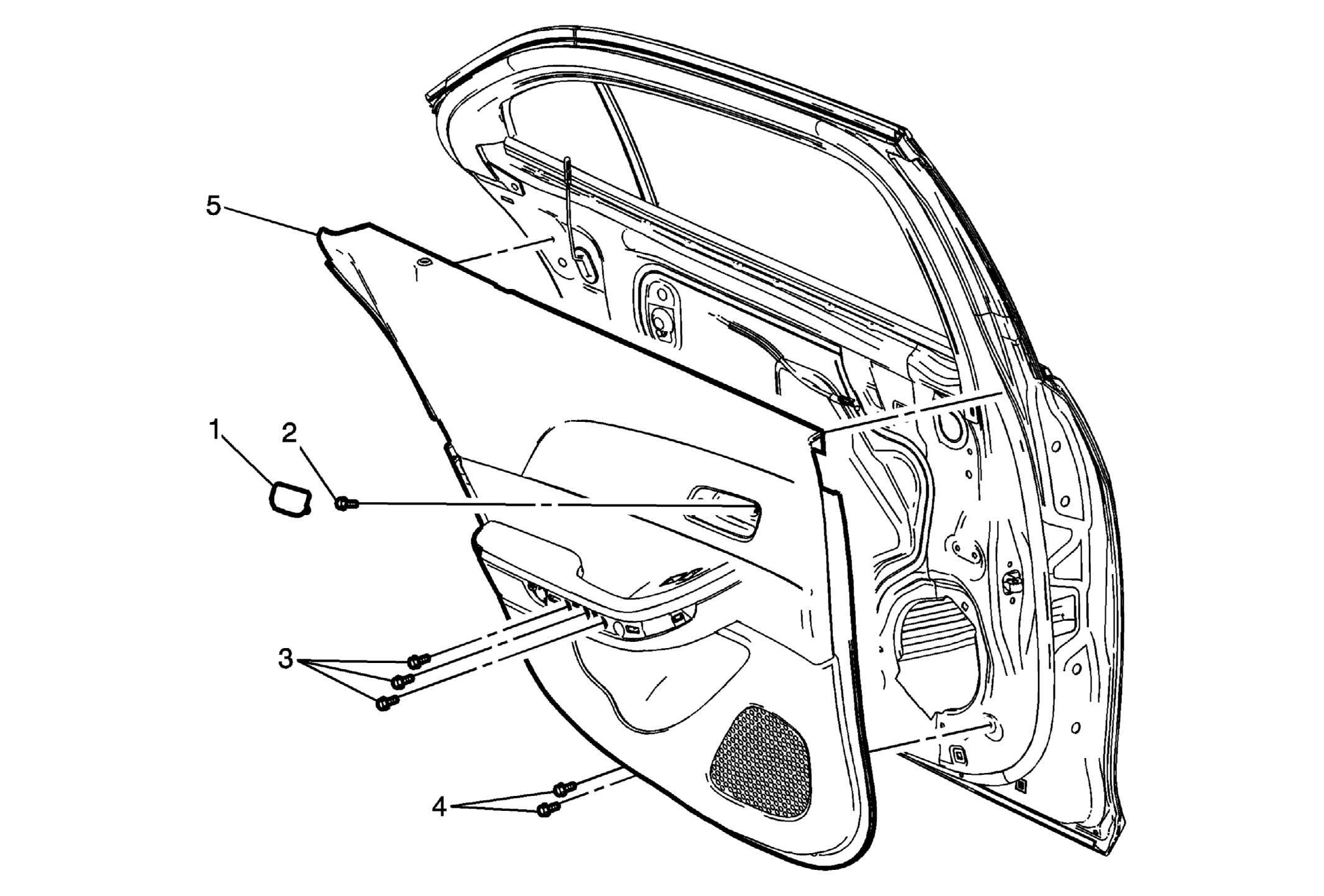

Fig 1: Rear Side Door Trim & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door pull handle cover. Refer to Rear Side Door Pull Handle Cover Replacement .
1	Rear Side Door Inside Handle Bolt Finish Cap
2	Rear Side Door Inside Handle Fastener CAUTION: Refer to Fastener Caution .
3	Rear Side Door Armrest Pull Cup Fastener (Qty: 3)
4	Rear Side Door Trim Panel Fastener (Qty: 2)
5	Rear Side Door Trim Assembly Procedure Use the appropriate plastic trim tool to aid in the removal of the door trim. Pull upwards on the door lock retainer cable to disengage. Disconnect the electrical connector.
