Front Side Door Trim Replacement

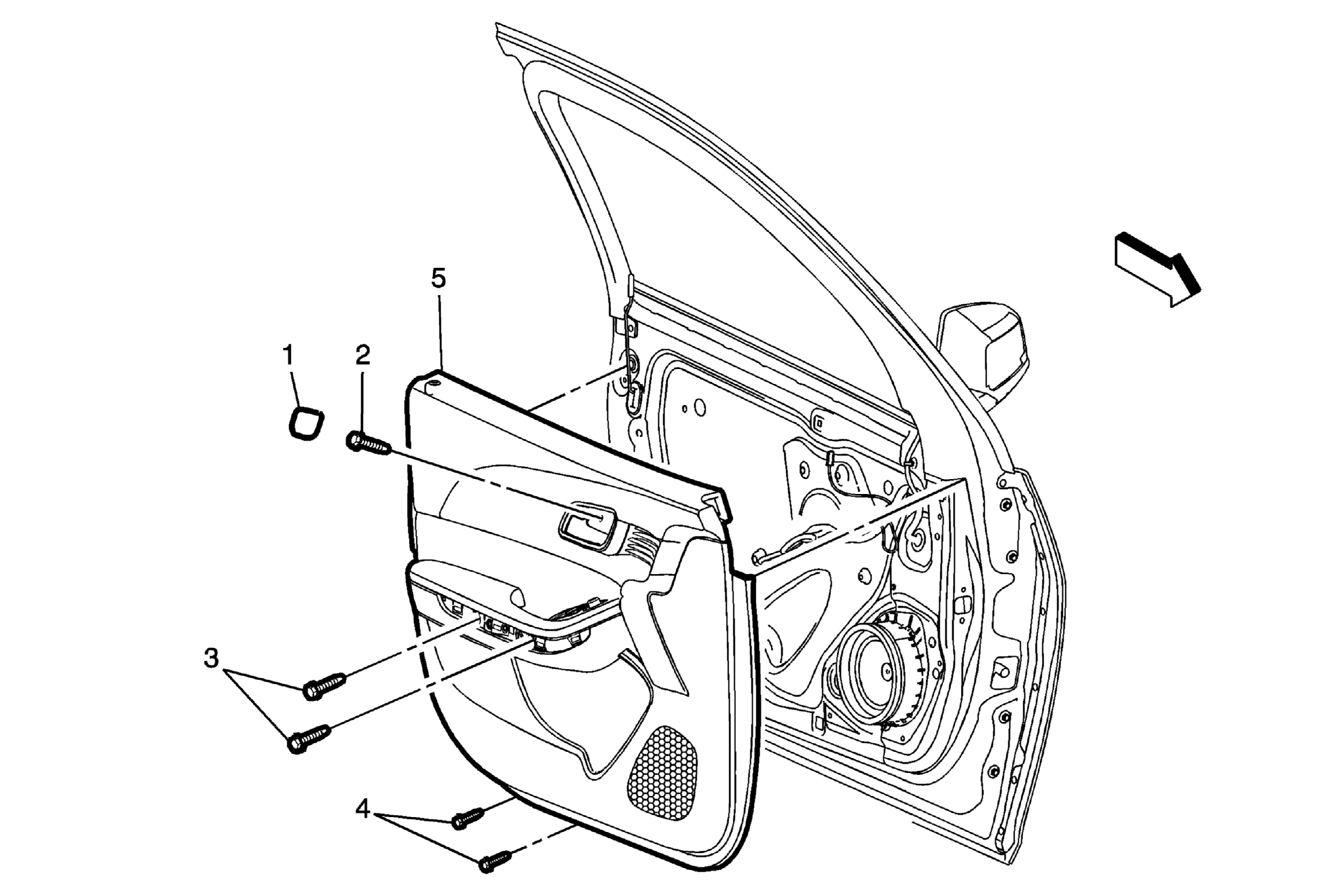

Fig 1: Front Side Door Trim & Mounting Components
GM2568803Courtesy of GENERAL MOTORS COMPANY
Front Side Door Trim Replacement

Callout Component Name
Preliminary Procedure
Remove the front side door pull handle cover. Refer to Front Side Door Pull Handle Cover Replacement .
1 Front Side Door Inside Handle Bolt Finish Cap
2 Front Side Door Inside Handle Fastener
CAUTION:

Refer to Fastener Caution .
3 Front Side Door Armrest Pull Cup Fastener (Qty: 2)
4 Front Side Door Trim Panel Fastener (Qty: 2)
5 Front Side Door Trim Assembly

Procedure

  1. Use the appropriate plastic trim tool to aid in the removal of the door trim.
  2. Pull upwards on the door lock retainer cable to disengage.
  3. Disconnect the electrical connector.
