Instrument Panel Accessory Trim Plate Replacement (UAG)

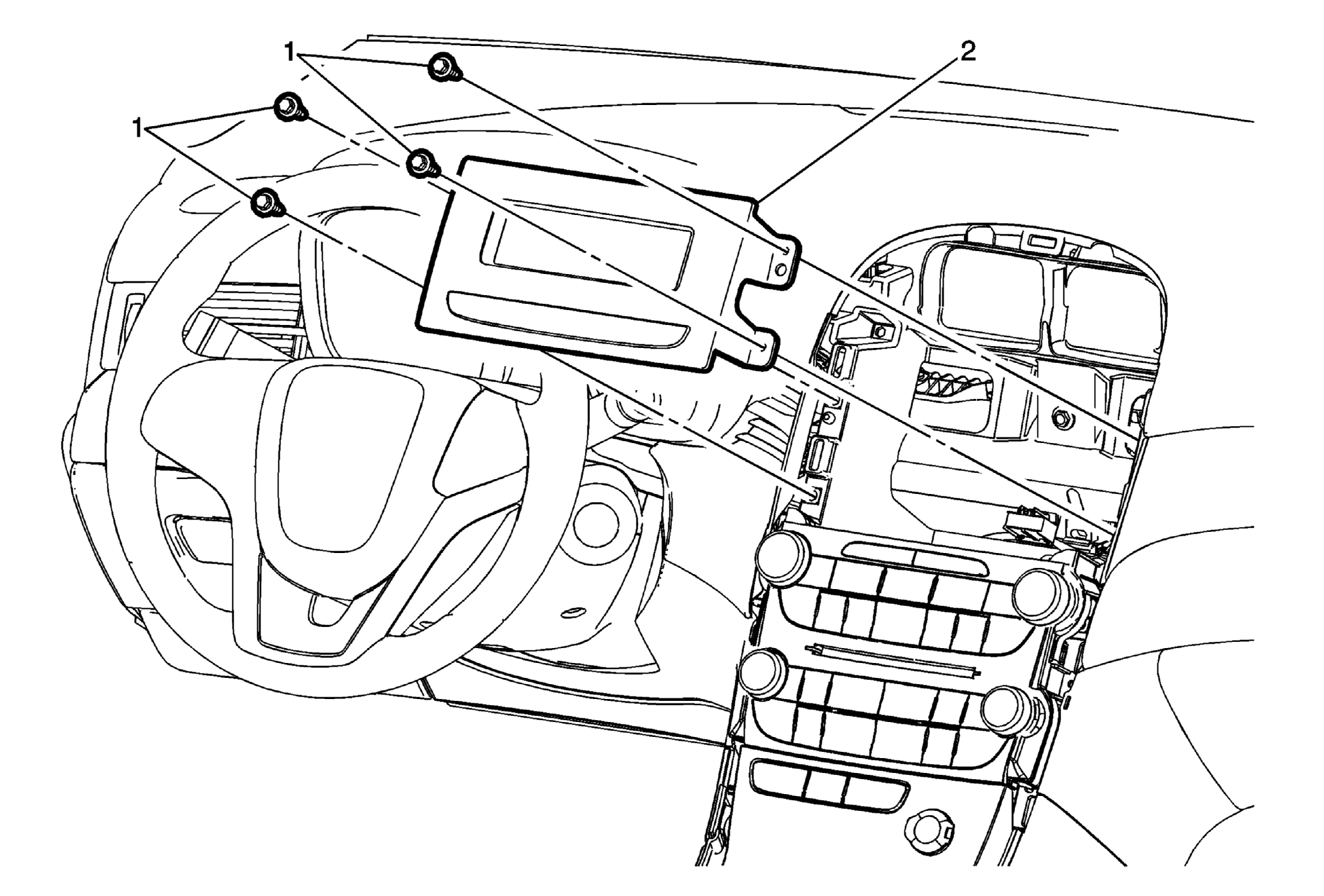

Fig 1: Instrument Panel Accessory Trim Plate (UAG)
GM2566102Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Accessory Trim Plate Replacement (UAG)

Callous Component Name
Preliminary Procedure
Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement .
1 Instrument Panel Accessory Trim Plate Fastener (Qty: 4)
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Accessory Trim Plate Assembly

Procedure

  1. Disconnect the electrical connections.
  2. Refer to Control Module References for programming and set up information.
