Rear Compartment Lid Replacement

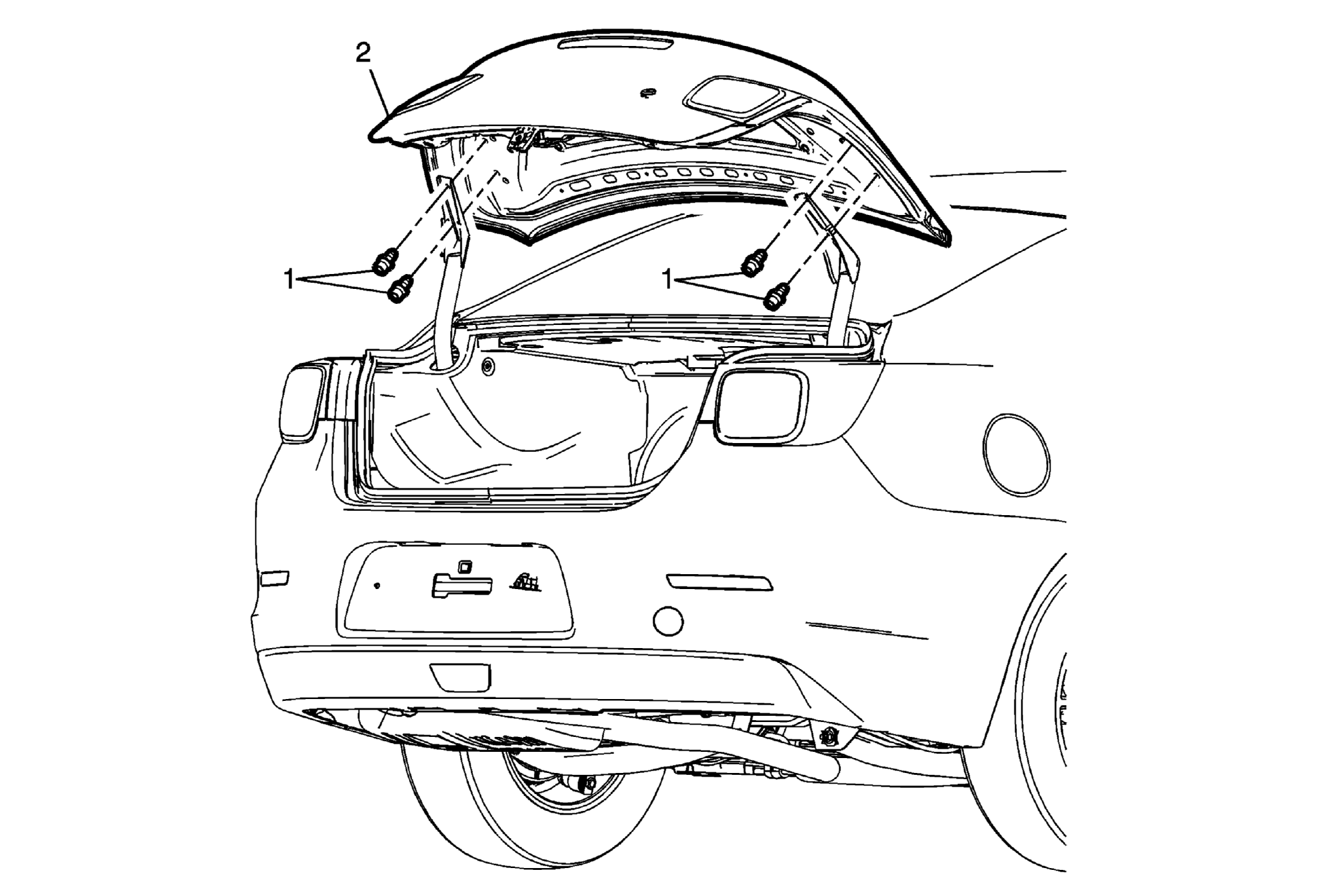

Fig 1: Rear Compartment Lid & Bolts
GM2554660Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Lid Replacement

Callout Component Name
Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1 Rear Compartment Lid Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Rear Compartment Lid

Procedure

  1. Disconnect the electrical connector.
  2. Adjust the rear compartment lid as needed. Refer to Rear Compartment Lid Adjustment .
  3. Transfer components as necessary.
