Hood Replacement

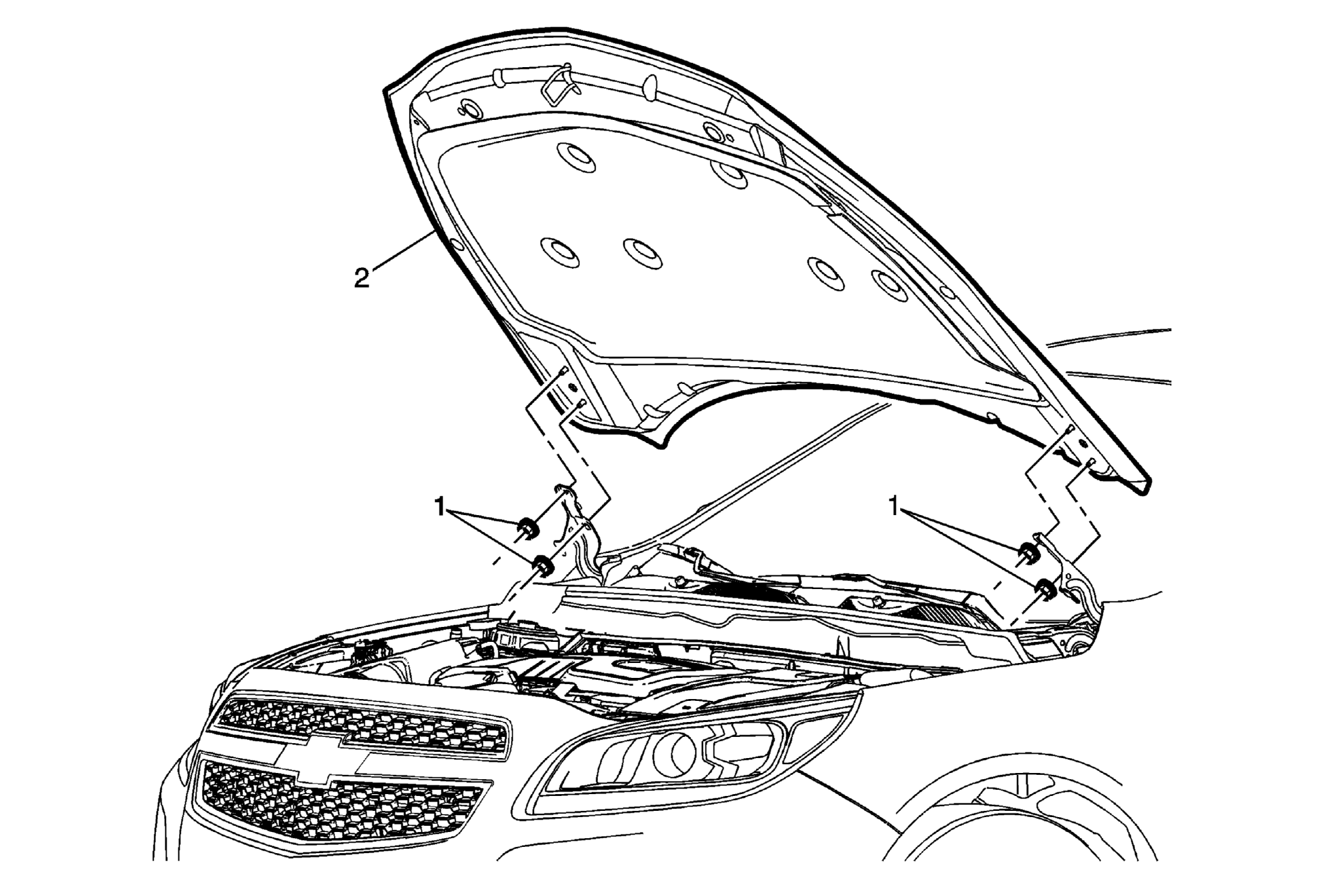

Fig 1: Hood & Hinge Nuts

Courtesy of GENERAL MOTORS COMPANY

Hood Replacement

Callout	Component Name
Preliminary Procedure Disconnect the hood strut. Refer to Hood Strut Replacement .
1	Hood Hinge Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Mark the hood or hinge position in order to aid in hood installation. Tighten 22 N.m (16 lb ft)
2	Hood Procedure Transfer parts as needed. Adjust the hood if needed. Refer to Hood Adjustment .

Callout

Component Name

Preliminary Procedure
Disconnect the hood strut. Refer to Hood Strut Replacement .

Hood Hinge Nut (Qty: 4)

CAUTION:

Procedure
Mark the hood or hinge position in order to aid in hood installation.
Tighten
22 N.m (16 lb ft)

Hood

Procedure
