Hood Rear Weatherstrip Replacement
Hood Rear Weatherstrip Replacement

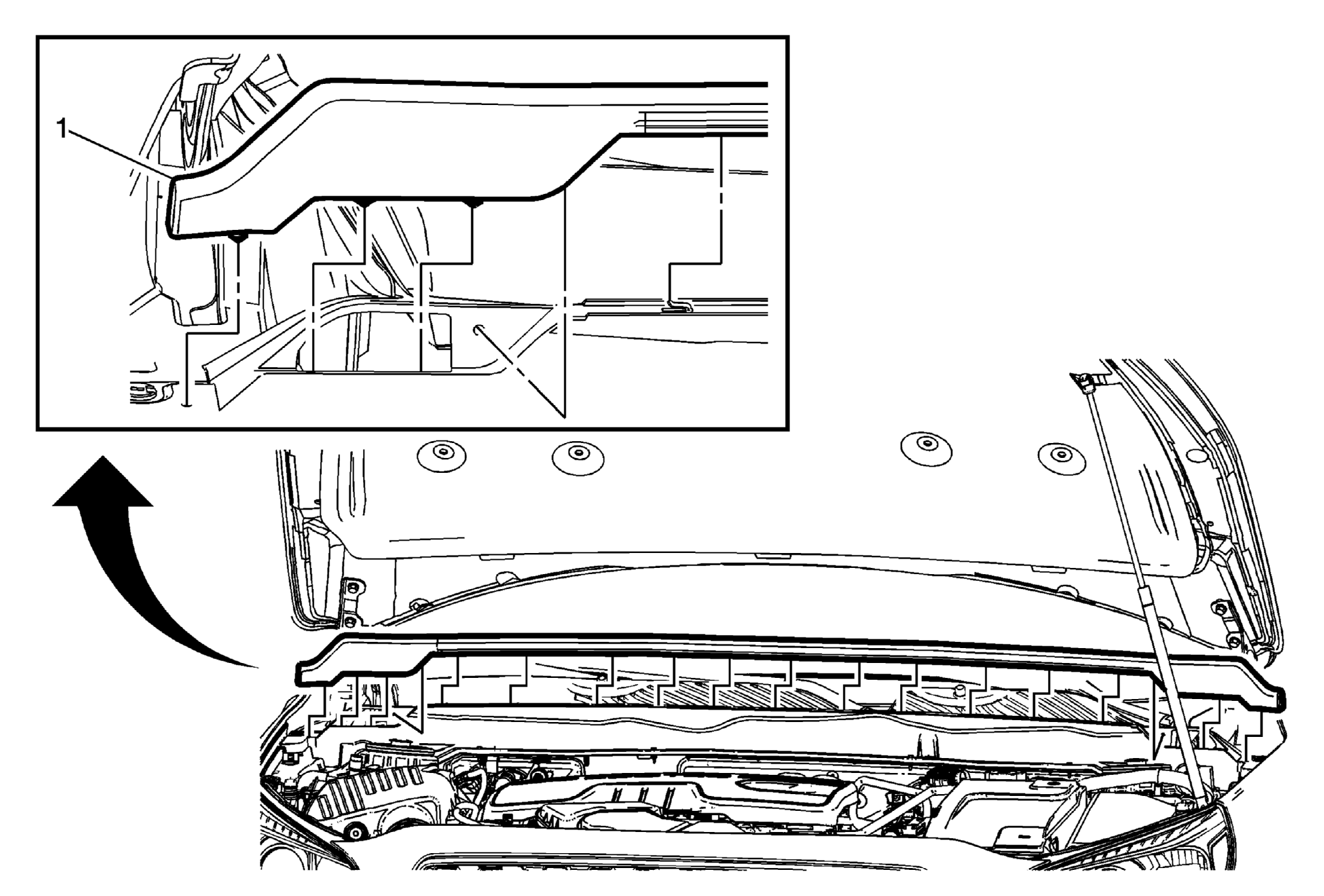

| Callout | Component Name |
|---|---|
| 1 | Hood Rear Weatherstrip Procedure The hood rear weatherstrip is held in place with 20 plastic retainers, 12 are part of the air inlet grille and 8 are part of the weatherstrip ends. Carefully pull the weatherstrip to the right/left to release from the retainers on the air inlet grille. Using an appropriate tool, release the retainers on the ends. |
