Hood Primary Latch Release Cable Replacement

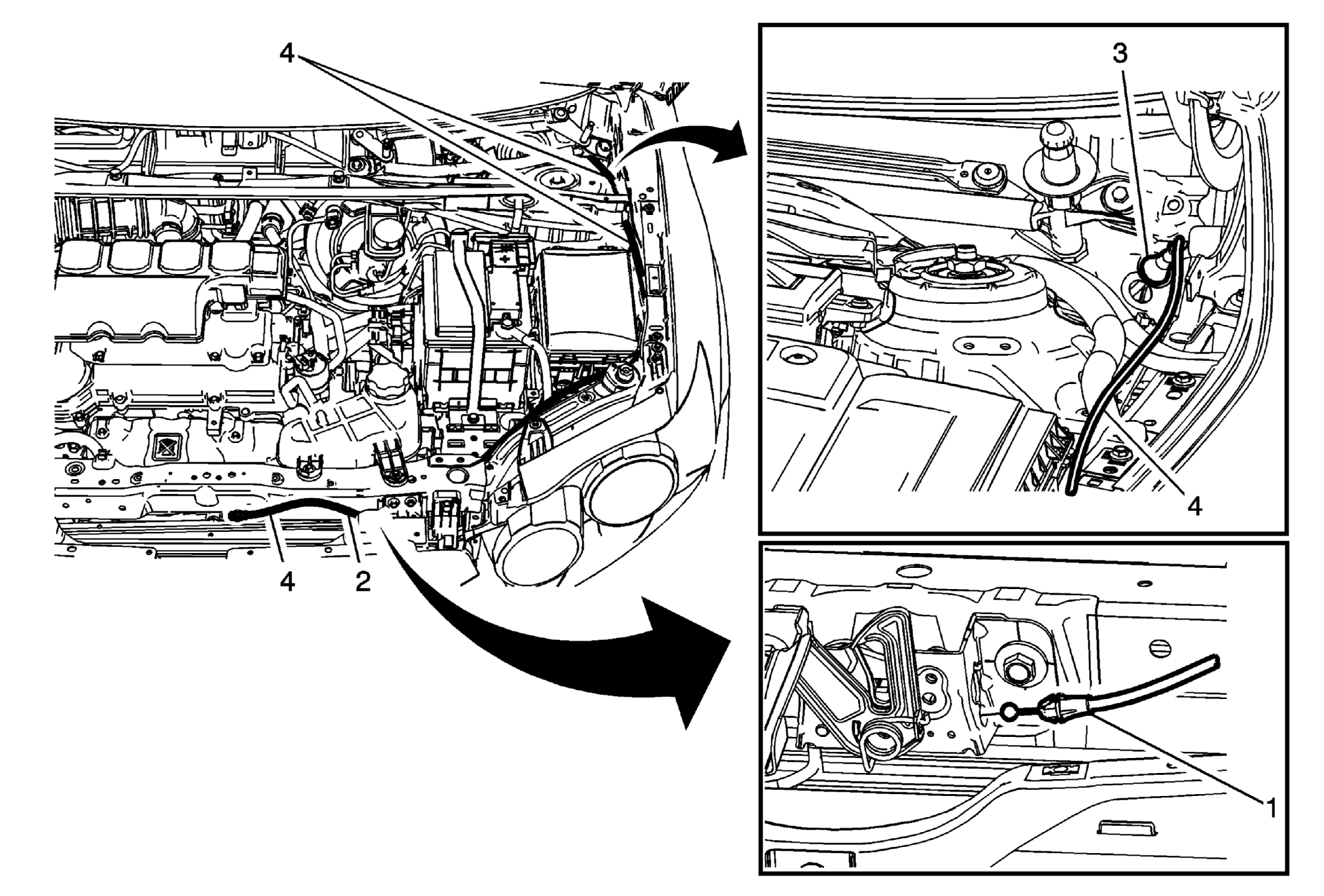

Fig 1: Hood Primary Latch Release Cable & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Hood Primary Latch Release Cable Replacement

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia center support. Refer to Front Bumper Fascia Center Support Replacement .
1	Hood Primary Latch Cable Procedure  Disconnect the hood primary latch release cable from the primary hood latch.
2	Hood Primary Latch Release Cable Retainer Procedure  Disconnect the hood release cable retainers from the hood release cable.
3	Hood Primary Latch Release Cable Grommet
4	Hood Primary Latch Release Cable Procedure  Disconnect the hood primary latch release cable handle from the hood latch cable.
