Hood Insulator Replacement

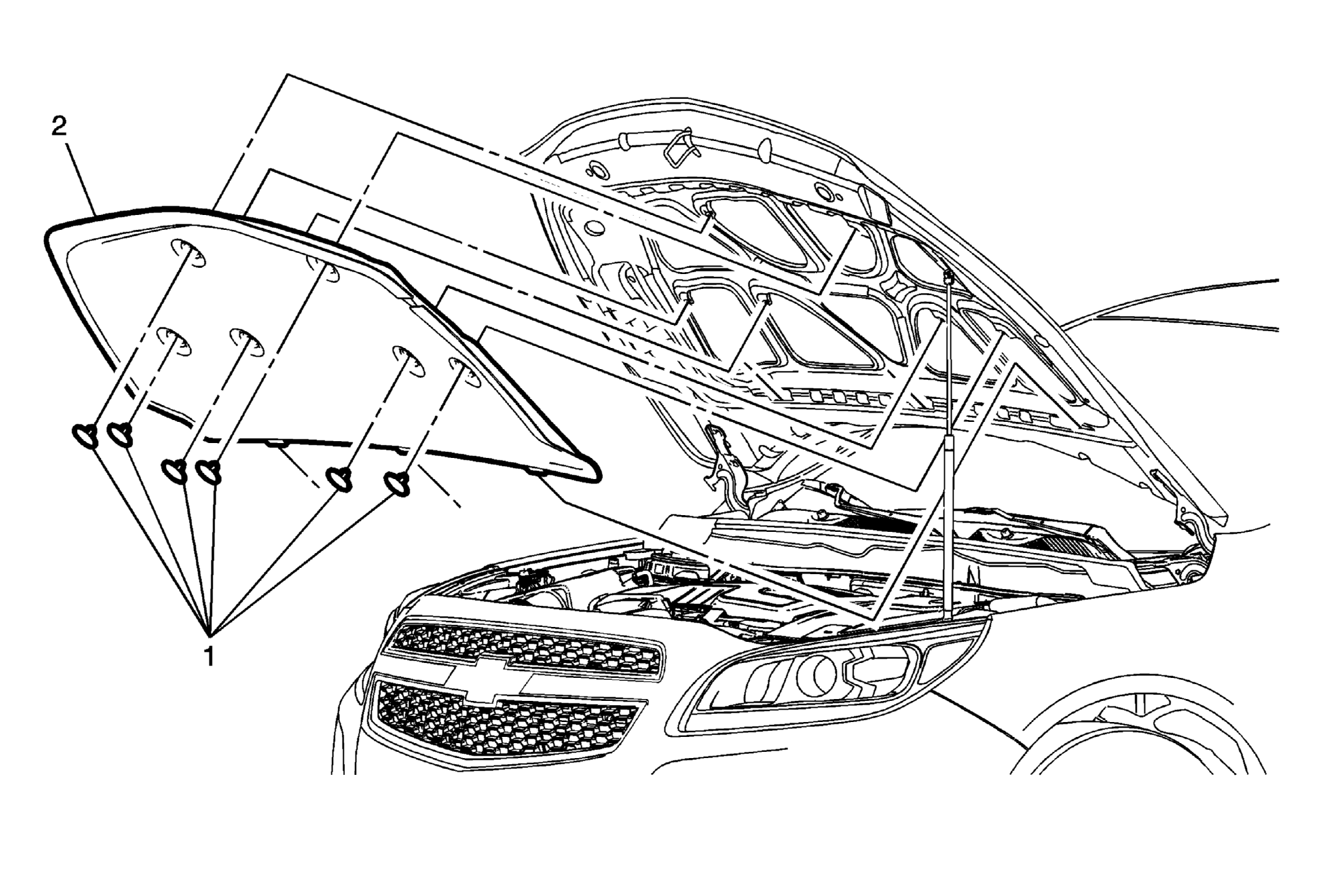

Fig 1: Hood Insulator & Retainers
GM2555505Courtesy of GENERAL MOTORS COMPANY
Hood Insulator Replacement

Callout Component Name
1 Hood Insulator Plastic Retainer (Qty: 6)
2 Hood Insulator
Procedure
Ensure the 3 integral tabs are secured to the hood.
