Driver Information Display Replacement (UDY)

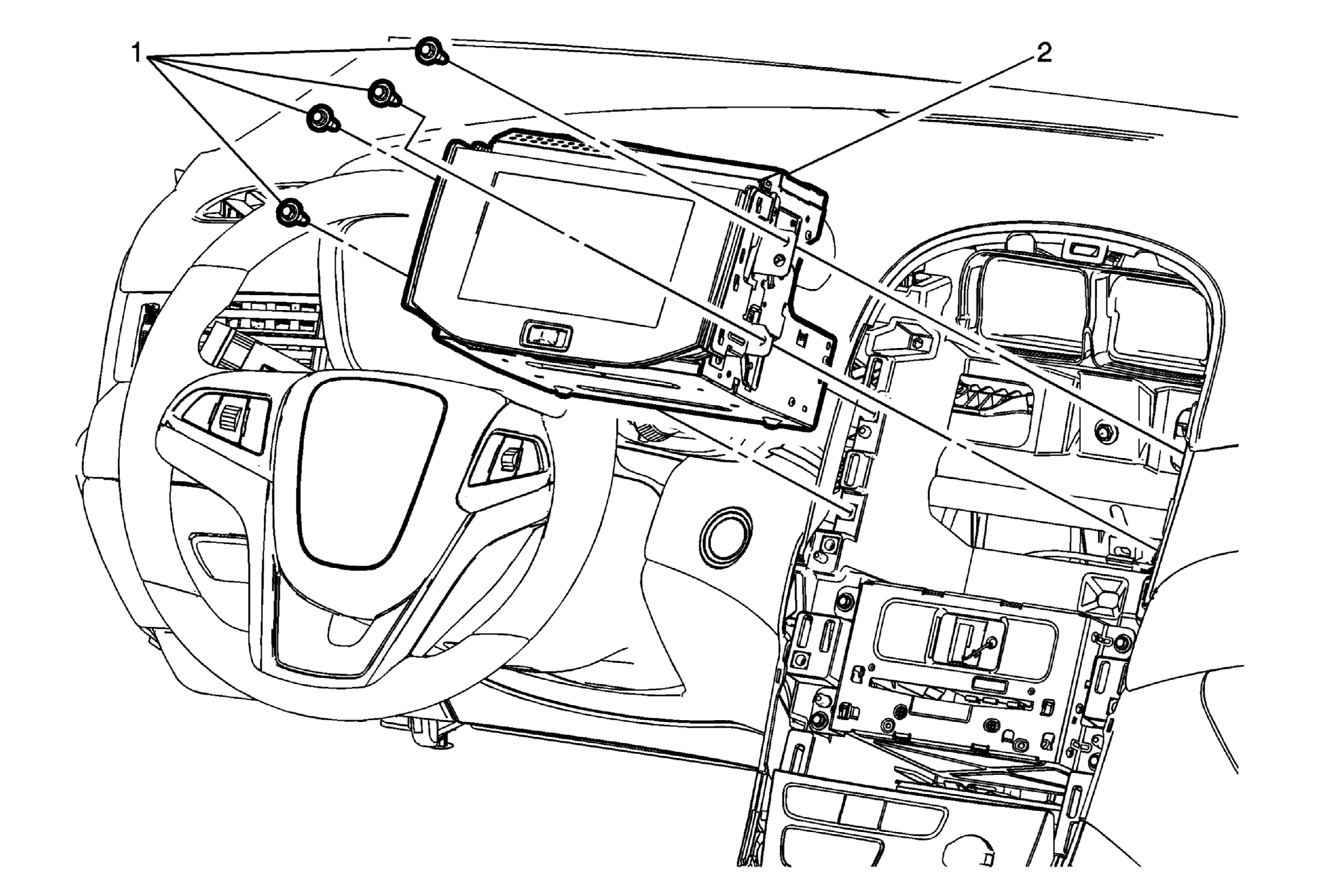

Fig 1: Driver Information Display (UDY)

Courtesy of GENERAL MOTORS COMPANY

Callous	Component Name
Preliminary Procedures Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement . Remove the radio control assembly. Refer to Radio Control Assembly Replacement .
1	Drivers Information Display Fastener (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Drivers Information Display Assembly Procedure Disconnect the electrical connections. Refer to Control Module References for programming and set up information.

Callous

Component Name

Preliminary Procedures

Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement .
Remove the radio control assembly. Refer to Radio Control Assembly Replacement .

Drivers Information Display Fastener (Qty: 4)

CAUTION:

Drivers Information Display Assembly

Procedure
