Hood Primary and Secondary Latch Replacement

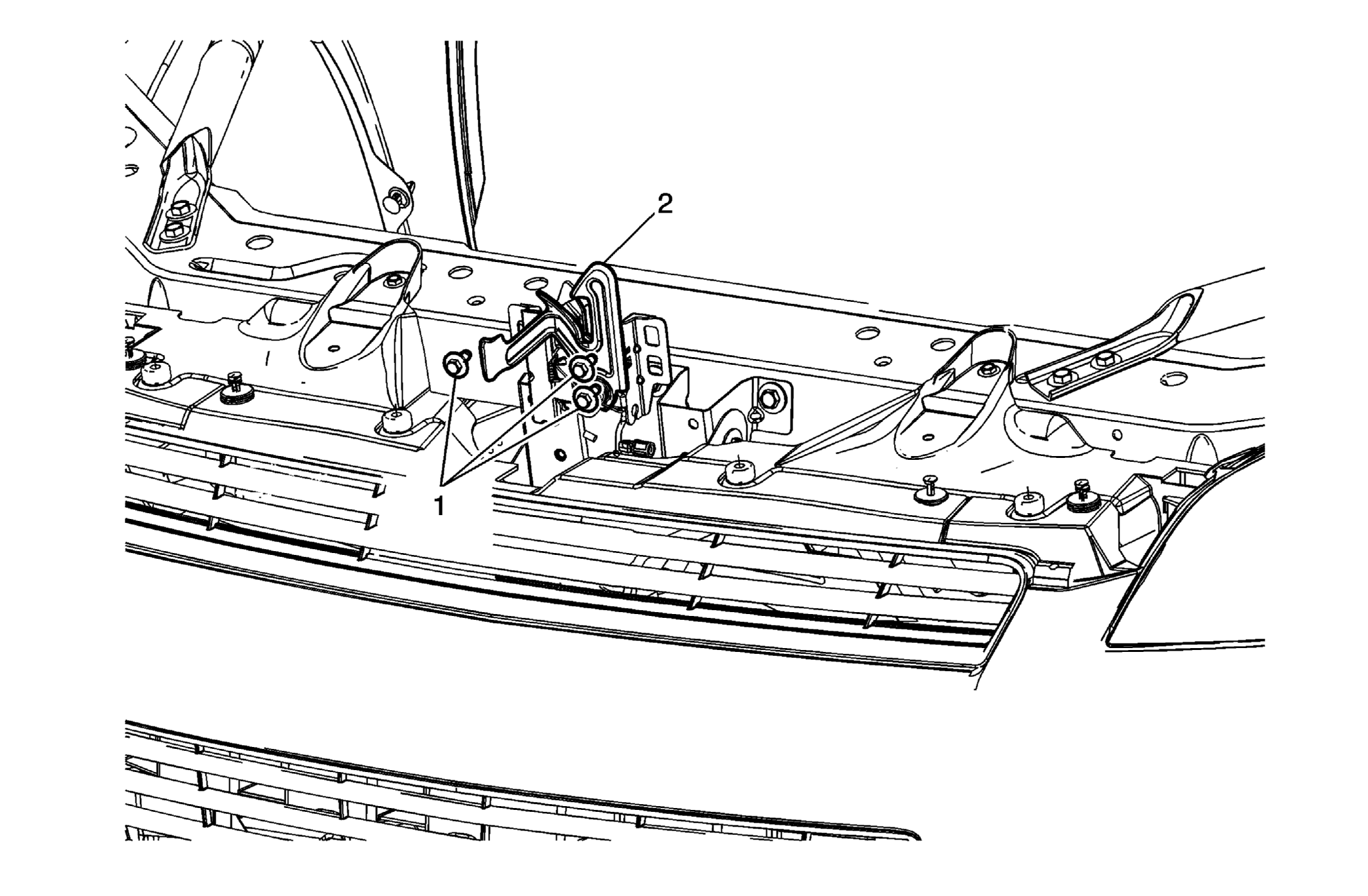

Fig 1: Hood Primary and Secondary Latch
GM1589345Courtesy of GENERAL MOTORS COMPANY
Hood Primary and Secondary Latch Replacement

Callout Component Name
1 Hood Latch Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (19 lb ft)
2 Hood Latch
  • Disconnect the release cable.
  • Disconnect the electrical connector for the remote start, if equipped.
