E29LR Fog Lamp - Left Rear (VD1)
WARNING: This page is about a different car, the 2013 Chevrolet Trax and 2013 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

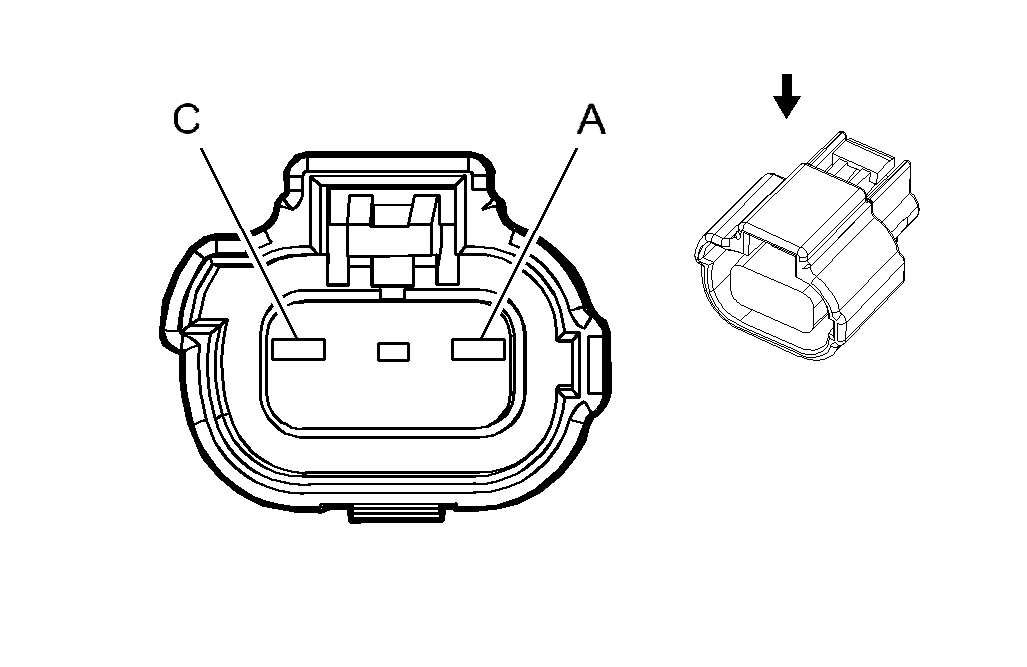

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Pending | J-35616-2A (GY) | J-38125-11A | Not Available | Pending | Not Available | Not Available |
E29LR Fog Lamp - Left Rear (VD1)
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | - | - | - | Not Occupied | - | - |
| 2 | 1 | BN/BU | 1977 | Rear Fog Lamp Relay Control | I | T79 |
| 3 | 1 | BK | 1350 | Ground | I | T79 |
