S70E Steering Wheel Controls Switch - Radio Presets
|
|
Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 104257-3
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F MODU MTE Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (L-BU) |
J-38125-24 |
104479-9 |
25 |
H |
H |

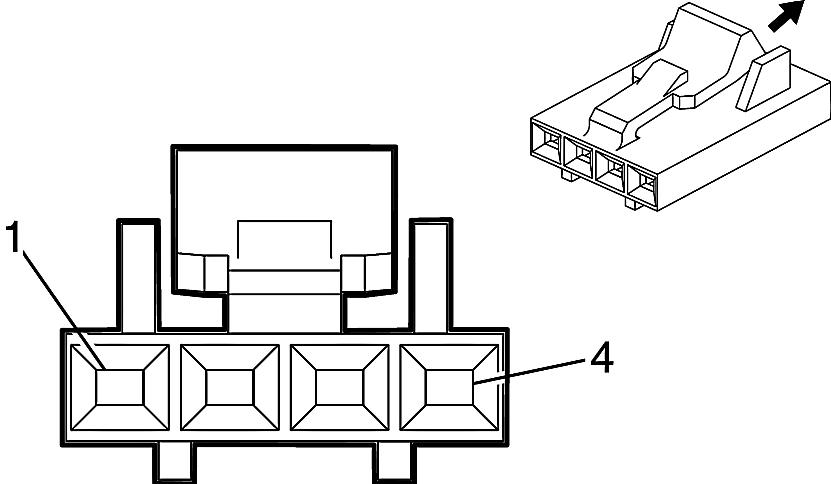

S70E Steering Wheel Controls Switch - Radio Presets
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
WH |
9500 |
Radio Preset Up Signal |
I |
- |
| 3 |
0.35 |
D-BU |
9501 |
Radio Preset Down Signal |
I |
- |
| 4 |
0.35 |
BK |
1550 |
Ground |
I |
- |
