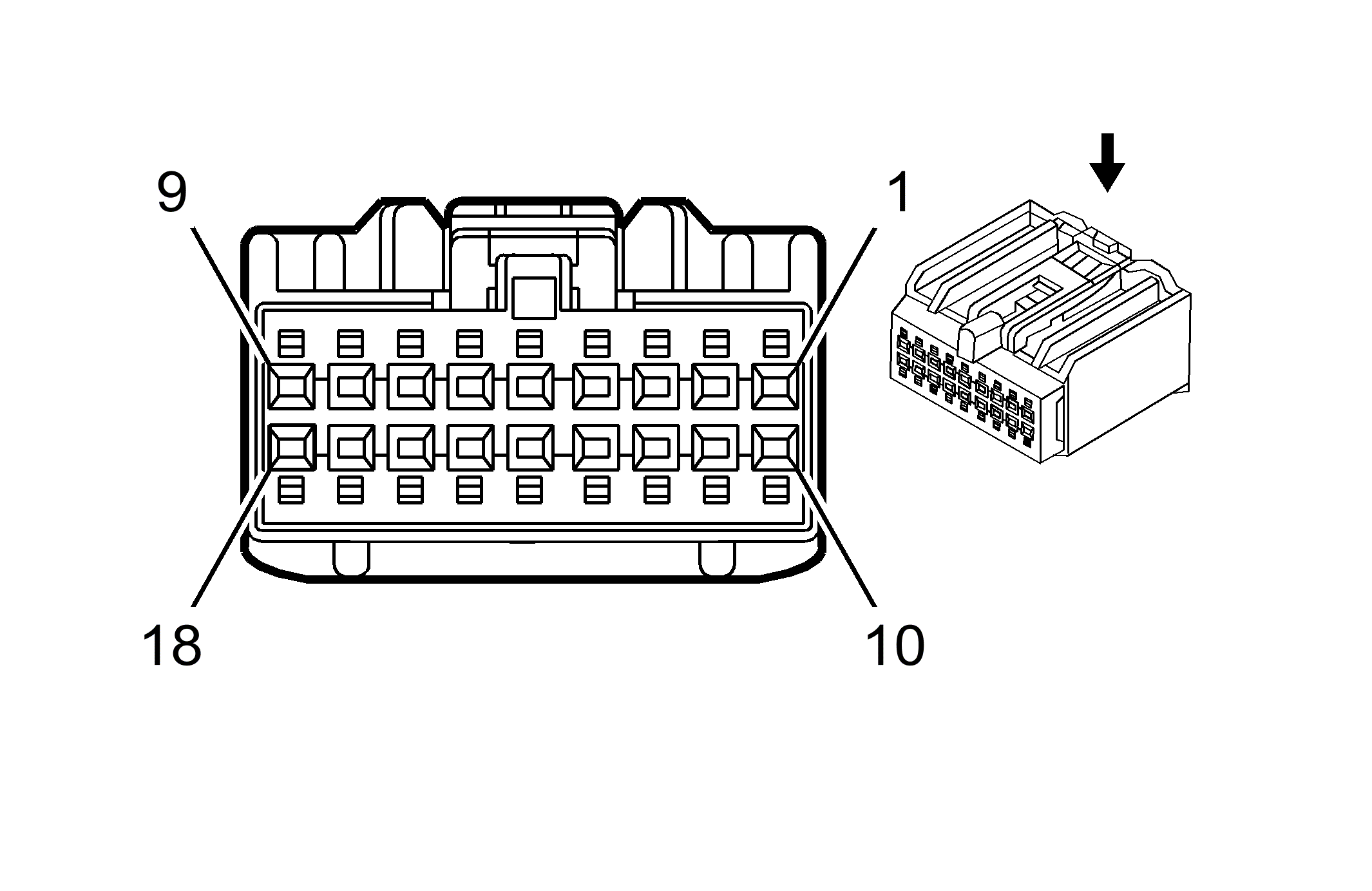

K16 Battery Energy Control Module X5 (HP6)

GM2746979

Connector Part Information

Harness Type: High Voltage Battery Measurement Section 2
OEM Connector: AIT2GPB-18-2BD
Service Connector: Service by Harness - See Part Catalog
Description: 18-Way F (OG)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available

K16 Battery Energy Control Module X5 (HP6)

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	BU	-	Cell Voltage 16 (-)	I	-
2	0.5	BU	-	Cell Voltage 15 (+)	I	-
3	0.5	BU	-	Cell Voltage 13 (+)	I	-
4	0.5	BU	-	Cell Voltage 11 (+)	I	-
5	0.5	BU	-	Cell Voltage 9 (+)	I	-
6	0.5	BU	-	Cell Voltage 7 (+)	I	-
7	0.5	BU	-	Cell Voltage 5 (+)	I	-
8	0.5	BU	-	Cell Voltage 3 (+)	I	-
9	0.5	BU	-	Cell Voltage 1 (+)	I	-
10	0.5	BU	-	Cell Voltage 16 (+)	I	-
11	0.5	BU	-	Cell Voltage 14 (+)	I	-
12	0.5	BU	-	Cell Voltage 12 (+)	I	-
13	0.5	BU	-	Cell Voltage 10 (+)	I	-
14	0.5	BU	-	Cell Voltage 8 (+)	I	-
15	0.5	BU	-	Cell Voltage 6 (+)	I	-
16	0.5	BU	-	Cell Voltage 4 (+)	I	-
17	0.5	BU	-	Cell Voltage 2 (+)	I	-
18	0.5	BU	-	Hybrid/EV Battery Positive Voltage	I	-
