K16 Battery Energy Control Module X4 (HP6)

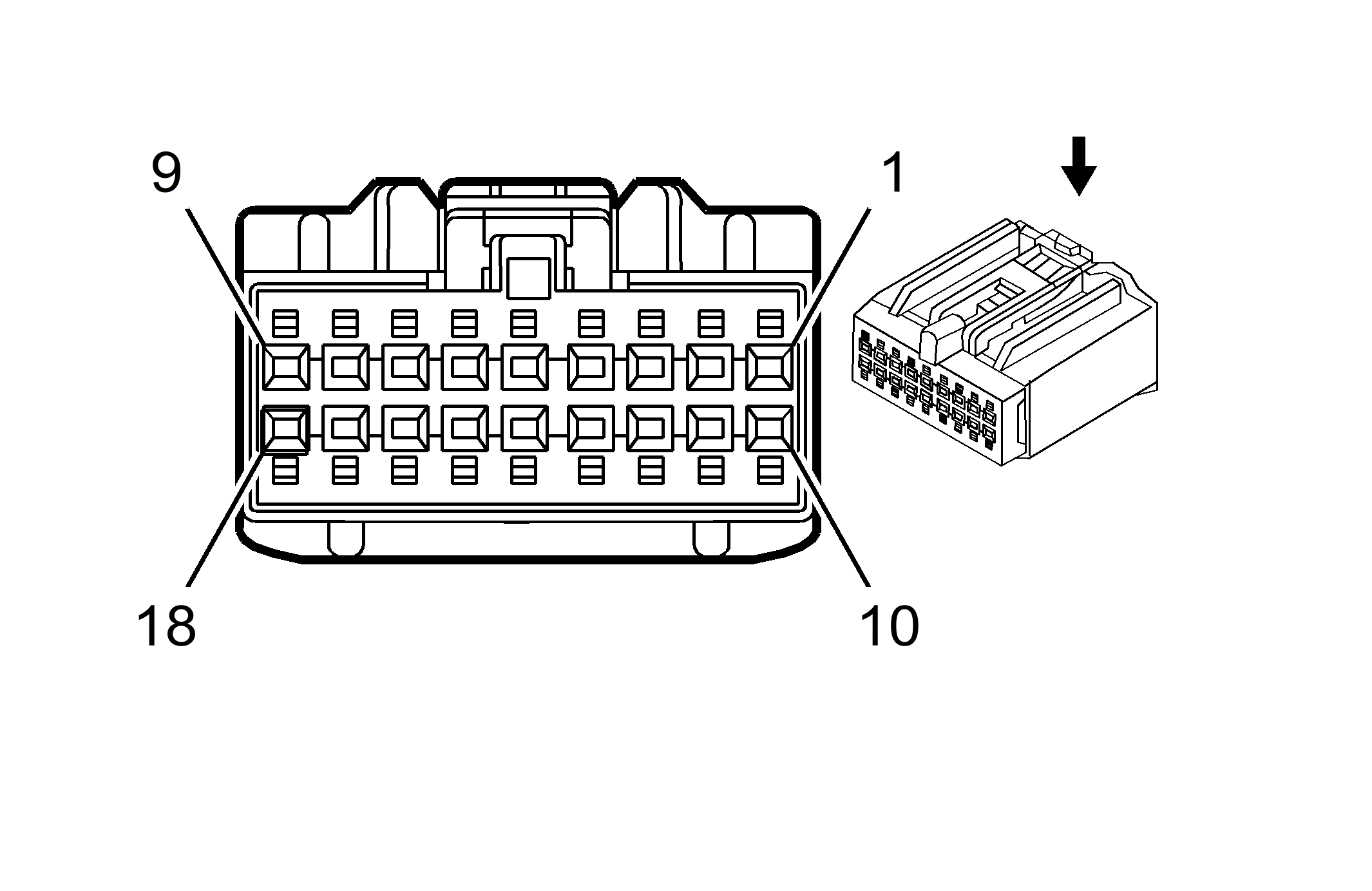

GM2747047

Connector Part Information

Harness Type: High Voltage Battery Measurement Section 1
OEM Connector: AIT2GPB-18-2AD
Service Connector: Service by Harness - See Part Catalog
Description: 18-Way F (OG)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available

K16 Battery Energy Control Module X4 (HP6)

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	BU	-	Cell Voltage 32 (-)	I	-
2	0.5	BU	-	Cell Voltage 31 (+)	I	-
3	0.5	BU	-	Cell Voltage 29 (+)	I	-
4	0.5	BU	-	Cell Voltage 27 (+)	I	-
5	0.5	BU	-	Cell Voltage 25 (+)	I	-
6	0.5	BU	-	Cell Voltage 23 (+)	I	-
7	0.5	BU	-	Cell Voltage 21 (+)	I	-
8	0.5	BU	-	Cell Voltage 19 (+)	I	-
9	0.5	BU	-	Cell Voltage 17 (+)	I	-
10	0.5	BU	-	Hybrid/EV Battery Negative Voltage	I	-
11	0.5	BU	-	Cell Voltage 32 (+)	I	-
12	0.5	BU	-	Cell Voltage 30 (+)	I	-
13	0.5	BU	-	Cell Voltage 28 (+)	I	-
14	0.5	BU	-	Cell Voltage 26 (+)	I	-
15	0.5	BU	-	Cell Voltage 24 (+)	I	-
16	0.5	BU	-	Cell Voltage 22 (+)	I	-
17	0.5	BU	-	Cell Voltage 20 (+)	I	-
18	0.5	BU	-	Cell Voltage 18 (+)	I	-
