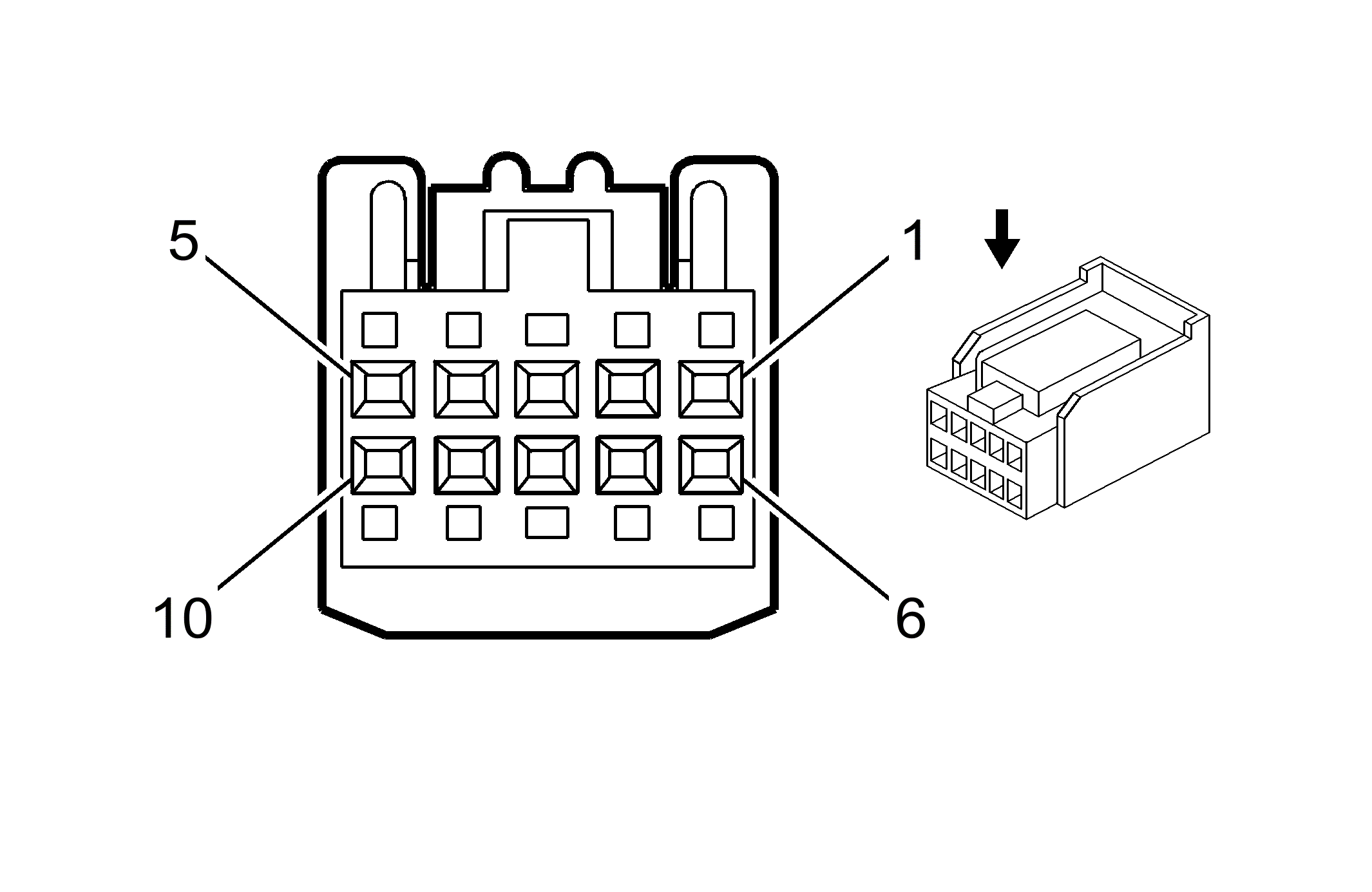

K16 Battery Energy Control Module X3 (HP6)
|
|
Connector Part Information
- Harness Type: High Voltage Battery Temperature
- OEM Connector: AIT2PB-10A-2BK
- Service Connector: 13577390
- Description: 10-Way F Kaizen 0.64 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
K16 Battery Energy Control Module X3 (HP6)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY |
5411 |
Battery Module Temperature Signal (7) |
I |
- |
| 2 |
0.35 |
RD |
5407 |
Battery Module Temperature Signal (3) |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
GN |
5410 |
Battery Module Temperature Signal (6) |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
OG/GY |
5597 |
Inlet Air Temperature Sensor Low Reference |
I |
- |
| 7 |
0.35 |
BN/GN |
5597 |
Inlet Air Temperature Sensor Low Reference |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
BN/GN |
5597 |
Inlet Air Temperature Sensor Low Reference |
I |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
