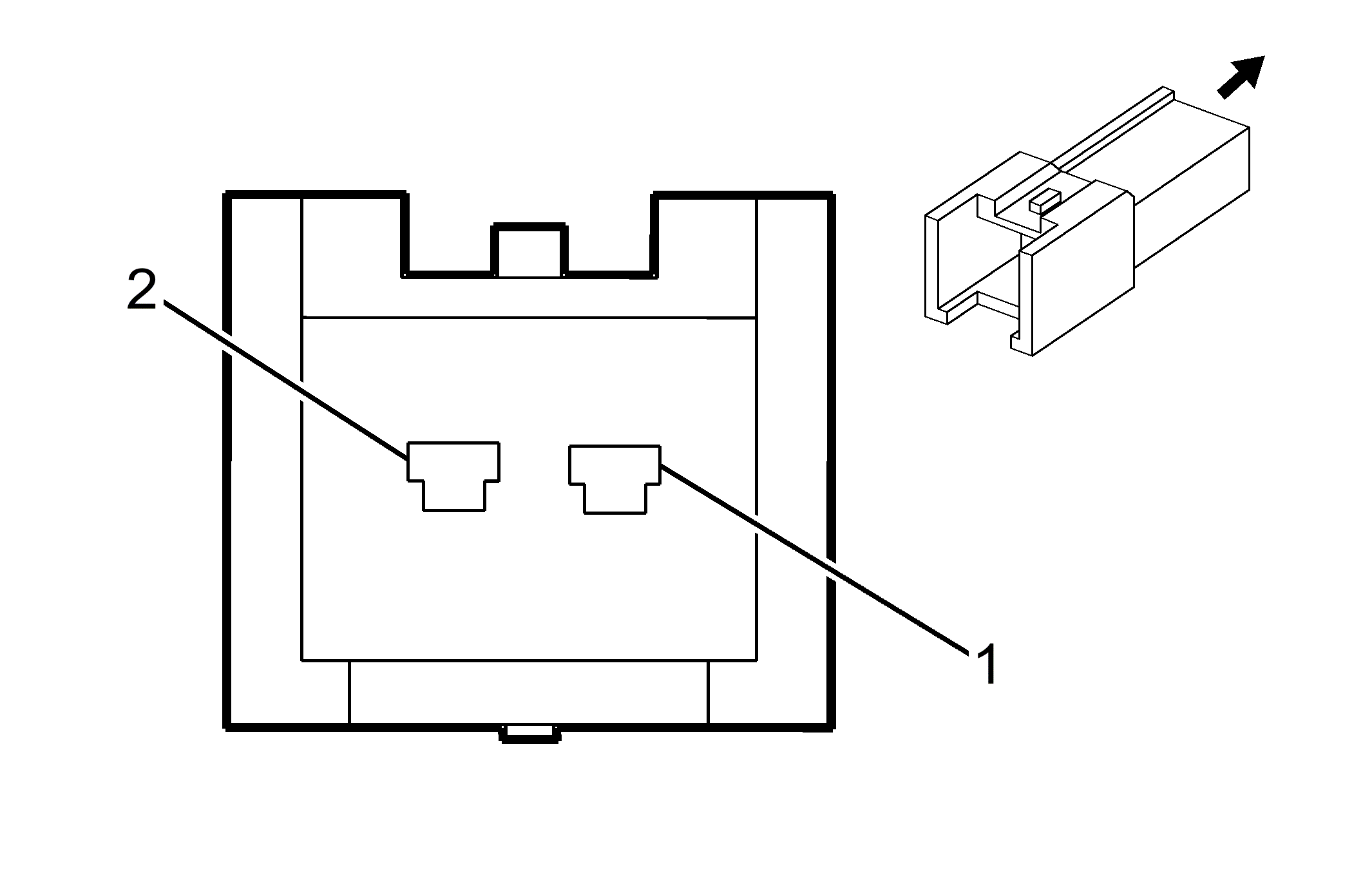

M7 Transmission Shift Lock Control Solenoid Actuator
|
|
Connector Part Information
- Harness Type: Shift Lever
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
M7 Transmission Shift Lock Control Solenoid Actuator
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0 |
BK |
2250 |
Ground |
I |
- |
| 2 |
0 |
RD |
816 |
Brake Transmission Shift Interlock Solenoid Control |
I |
- |
