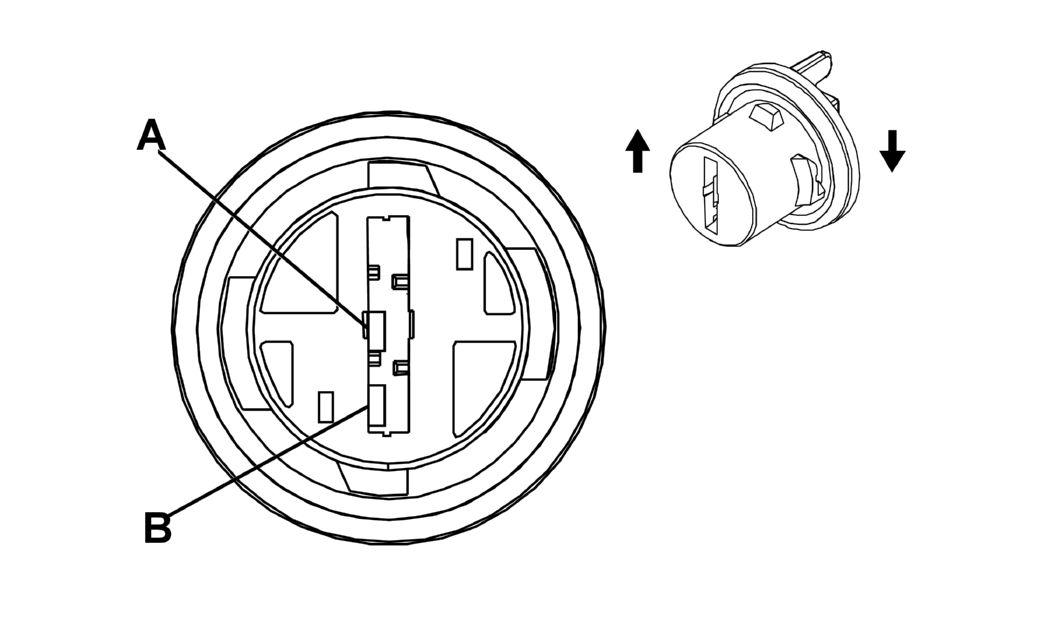

E5B Backup Lamp - Right
|
|
Connector Part Information
- Harness Type: Tail Lamp - Right
- OEM Connector: 35 FL C1
- Service Connector: Not Available
- Description: 2-Way F Lamp Socket (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
E5B Backup Lamp - Right
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
GN/WH |
24 |
Backup Lamp Supply Voltage |
I |
- |
| B |
0.5 |
BK |
550 |
Ground |
I |
- |
