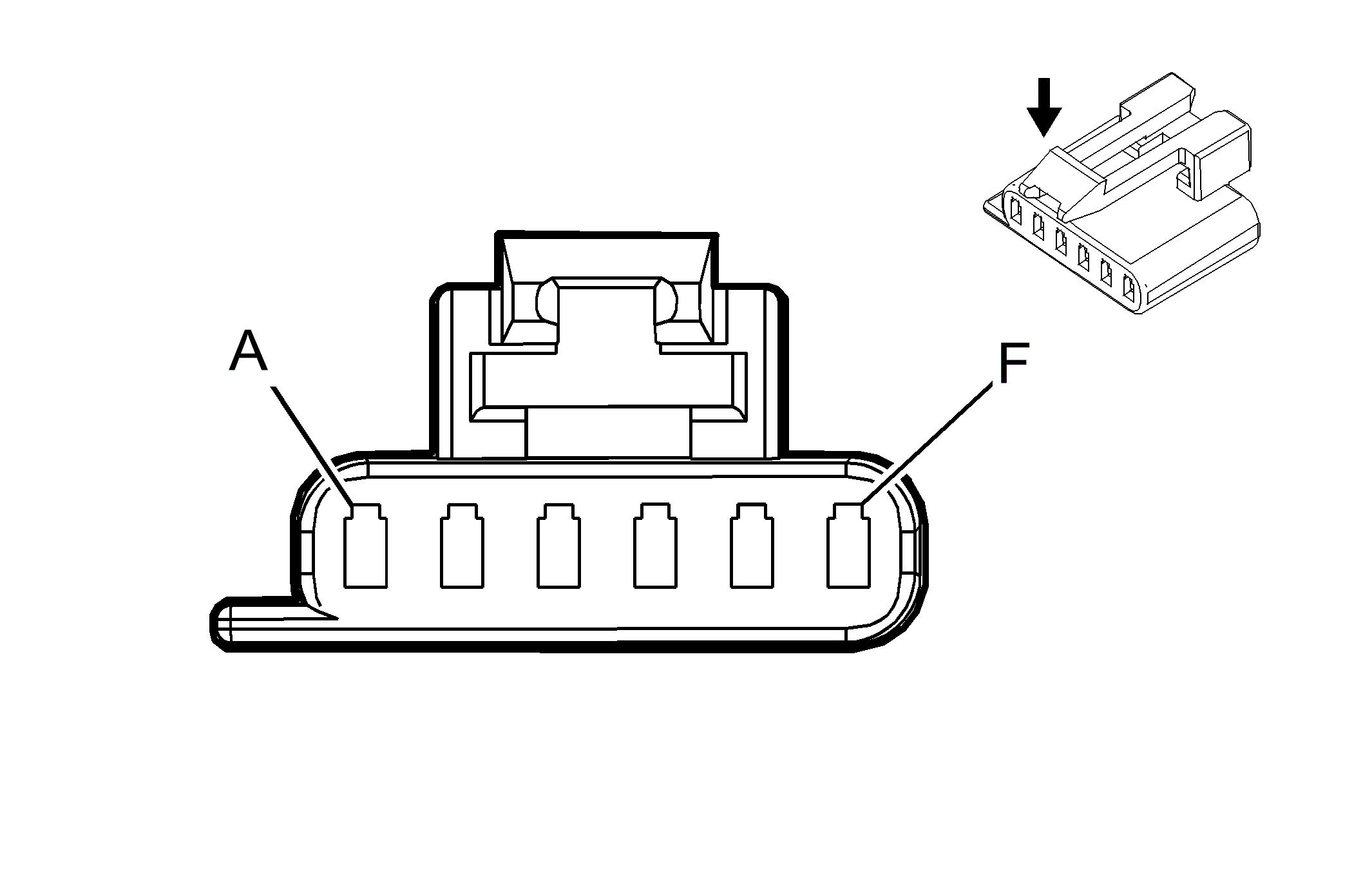

C4B Hybrid/EV Battery Section 2 X3 (HP6)
|
|
Connector Part Information
- Harness Type: High Voltage Battery Measurement Section 2
- OEM Connector: 12177011
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 150 Metri Pack Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
C4B Hybrid/EV Battery Section 2 X3 (HP6)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
BU |
CV24P |
Battery Voltage Signal (24) |
I |
- |
| B |
0.5 |
BU |
CV26P |
Battery Voltage Signal (26) |
I |
- |
| C |
0.5 |
BU |
CV22P |
Battery Voltage Signal (22) |
I |
- |
| D |
0.5 |
BU |
CV20P |
Battery Voltage Signal (20) |
I |
- |
| E |
0.5 |
BU |
CV18P |
Battery Voltage Signal (18) |
I |
- |
| F |
- |
- |
- |
Not Occupied |
- |
- |
