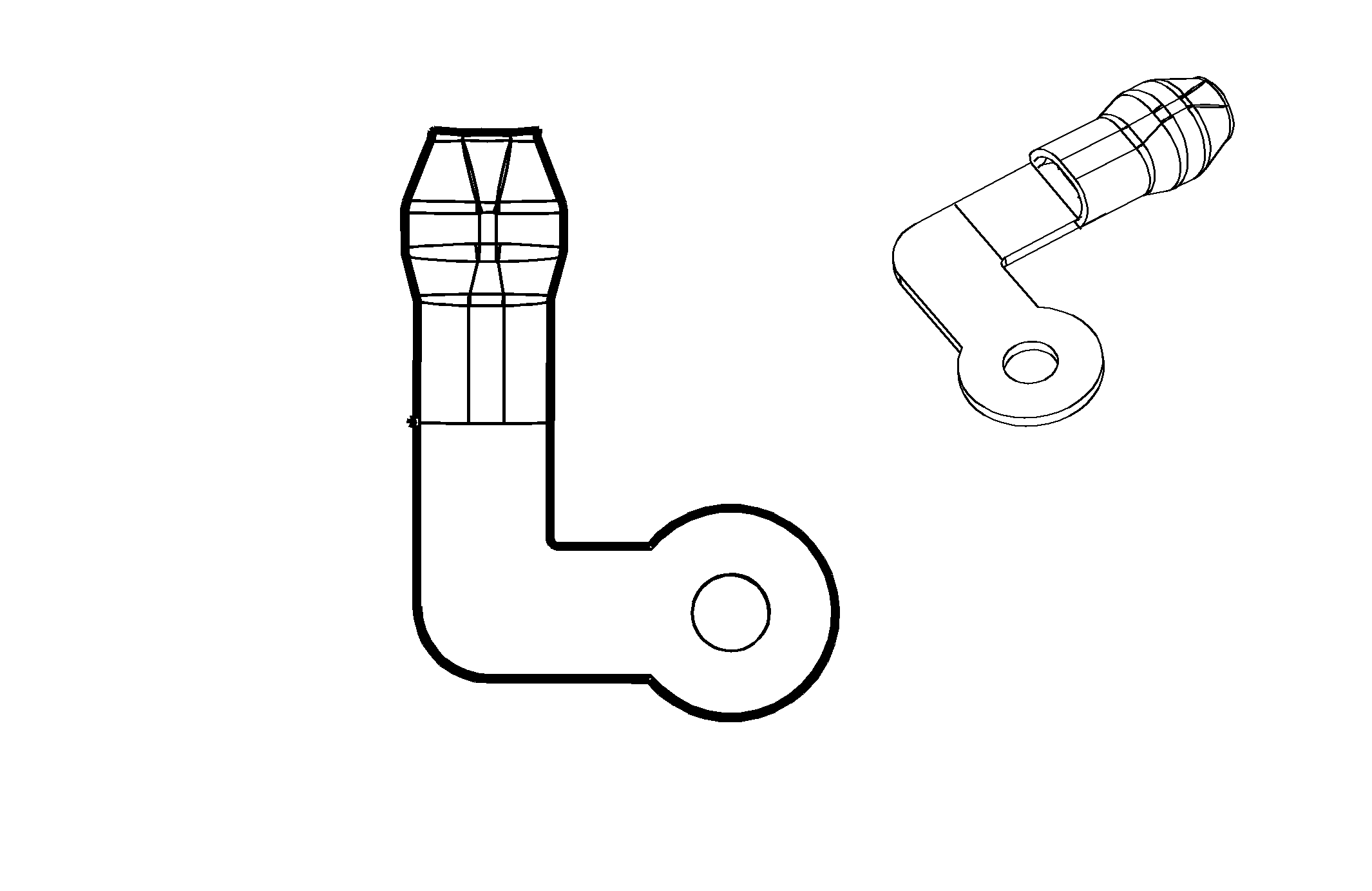

C4B Hybrid/EV Battery Section 2 (+) (HP6)
|
|
Connector Part Information
- Harness Type: High Voltage Battery Section 1 (-) and Section 2 (+)
- OEM Connector: 13735815
- Service Connector: Service by Harness - See Part Catalog
- Description: Ring Terminal
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
No Tool Required |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
C4B Hybrid/EV Battery Section 2 (+) (HP6)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
13 |
OG |
1 |
Battery To Battery High Current |
I |
- |
